HDMIEXTSP1-8PRO
BRAND: CERTECH

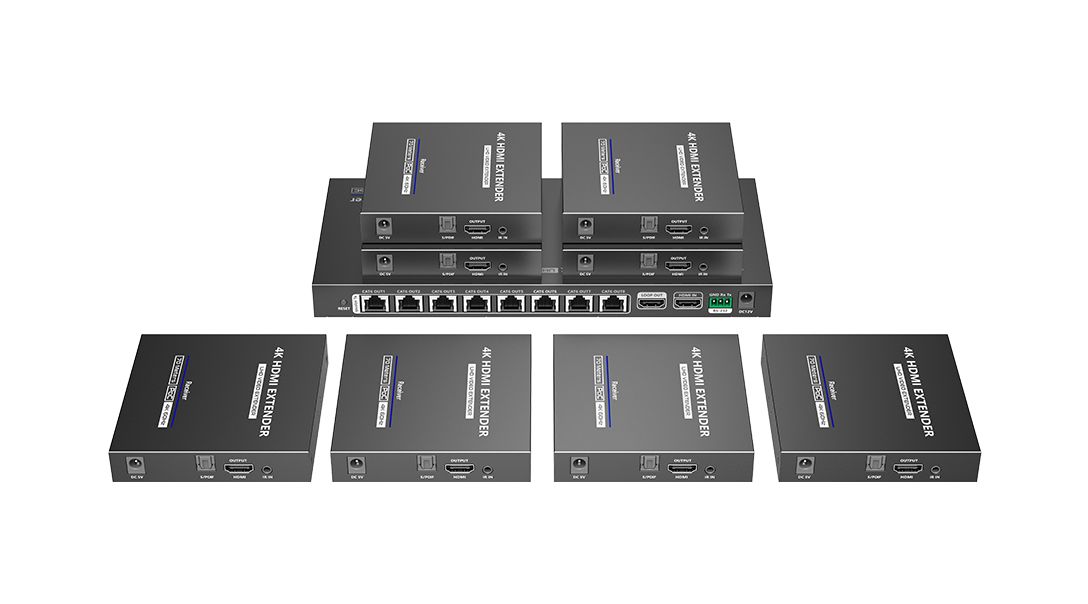

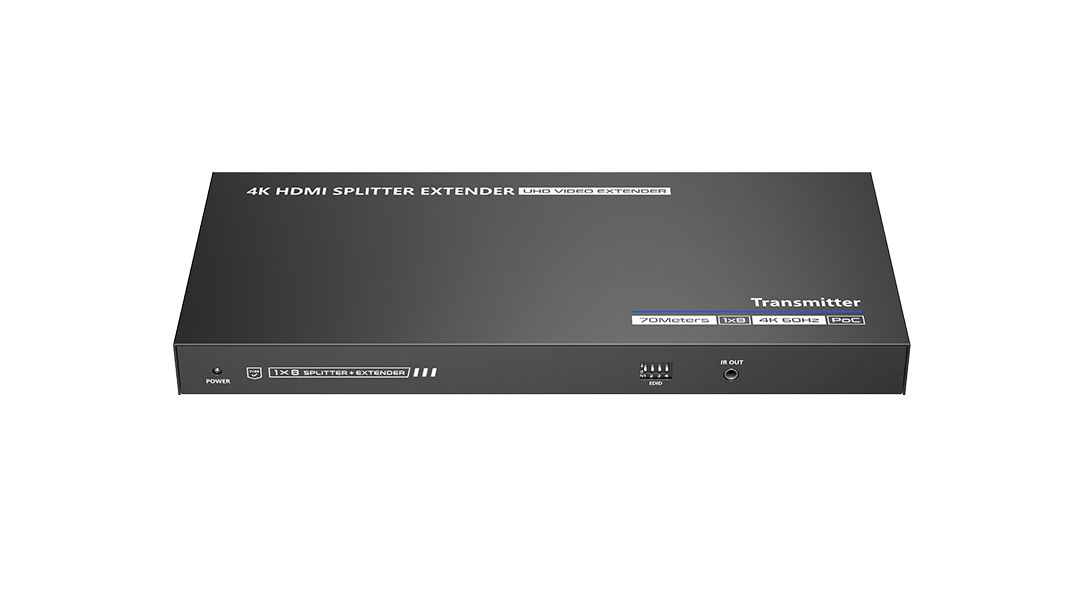

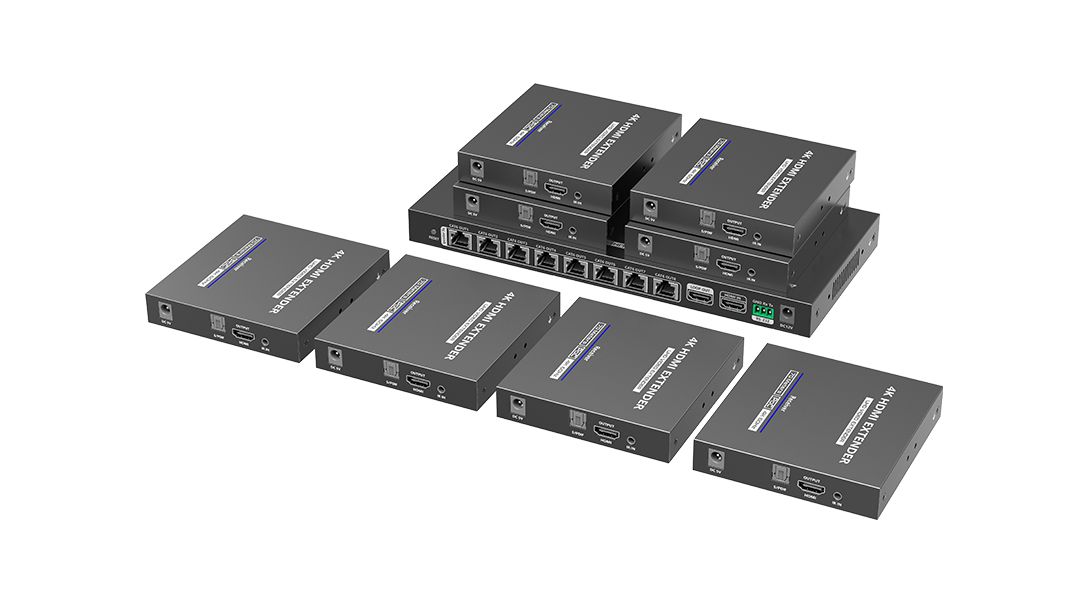

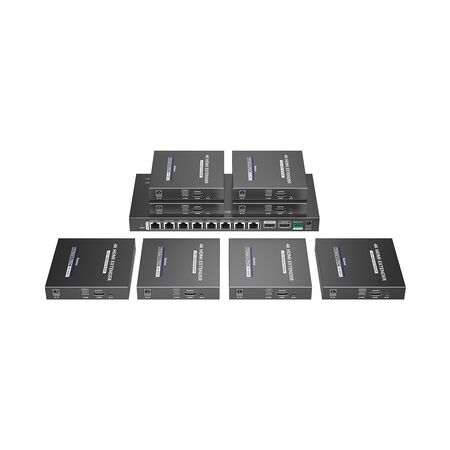

1 x 8 HDMI PoC Extender Splitter over Cat6, 4K@60Hz to 70 Metres


$1,451.60 List price: $1,887.10
+

Product Name/Title: 1 x 8 HDMI PoC Extender Splitter over Cat6, 4K@60Hz to 70 Metres

Brand: Certech

SKU: HDMIEXTSP1-8PRO

Alternatively Known As: HDMI Splitter, HDMI Extender, 1x8 HDMI Splitter, HDMI over Cat6 Extender

Technical Specifications
  • HDMI 2.0, HDCP2.2
  • Max Resolution: 4K@60Hz
  • Audio Formats: LPCM/DTS-HD/DTS-Audio, Dolby Digital 5.1
  • IR passback function (20KHz~60KHz)
  • RS-232 control
  • Power Consumption: TX + RX <50W
  • Dimensions (H x L x W): 23mm x 260mm x 120mm
  • Weight: 0.974 kg
Key Features
  • Distribution Mode: 1 in, 8 out
  • Transmission Distance: 70m by Cat6/6A
  • HDMI Signal: HDMI 2.0, HDCP2.2
  • HDMI Resolution: 4K@60Hz (Max)
  • Audio Formats: LPCM/DTS-HD/DTS-Audio, Dolby Digital 5.1
  • IR: Supports IR passback function (20KHz~60KHz)
  • RS-232: 3 Pin: TxD-RxD-GND, follows RS-232 levels
  • Working Temperature: -20~60 degrees Celsius
  • Storage Temperature: -30~70 degrees Celsius
  • Humidity (no condensation): 0~90% RH
  • Protection: ESD Protection, lightning protection, surge protection
  • Power Supply: TX DC12V/5A
  • Power Consumption: TX + RX <50W
  • Material: Iron
  • Colour: Black
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Studios
  • Multimedia classrooms
  • Transit deployment
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Efficient signal distribution reduces the need for multiple devices, minimizing electronic waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Certech 1 x 8 HDMI PoC Extender Splitter over Cat6 is available now for immediate purchase. Ideal for multimedia applications.

Specification Sheet (hdmiextsp1-8pro_u.pdf, 485 Kb) [Download]
