HDMIEXTSP1-840
BRAND: CERTECH

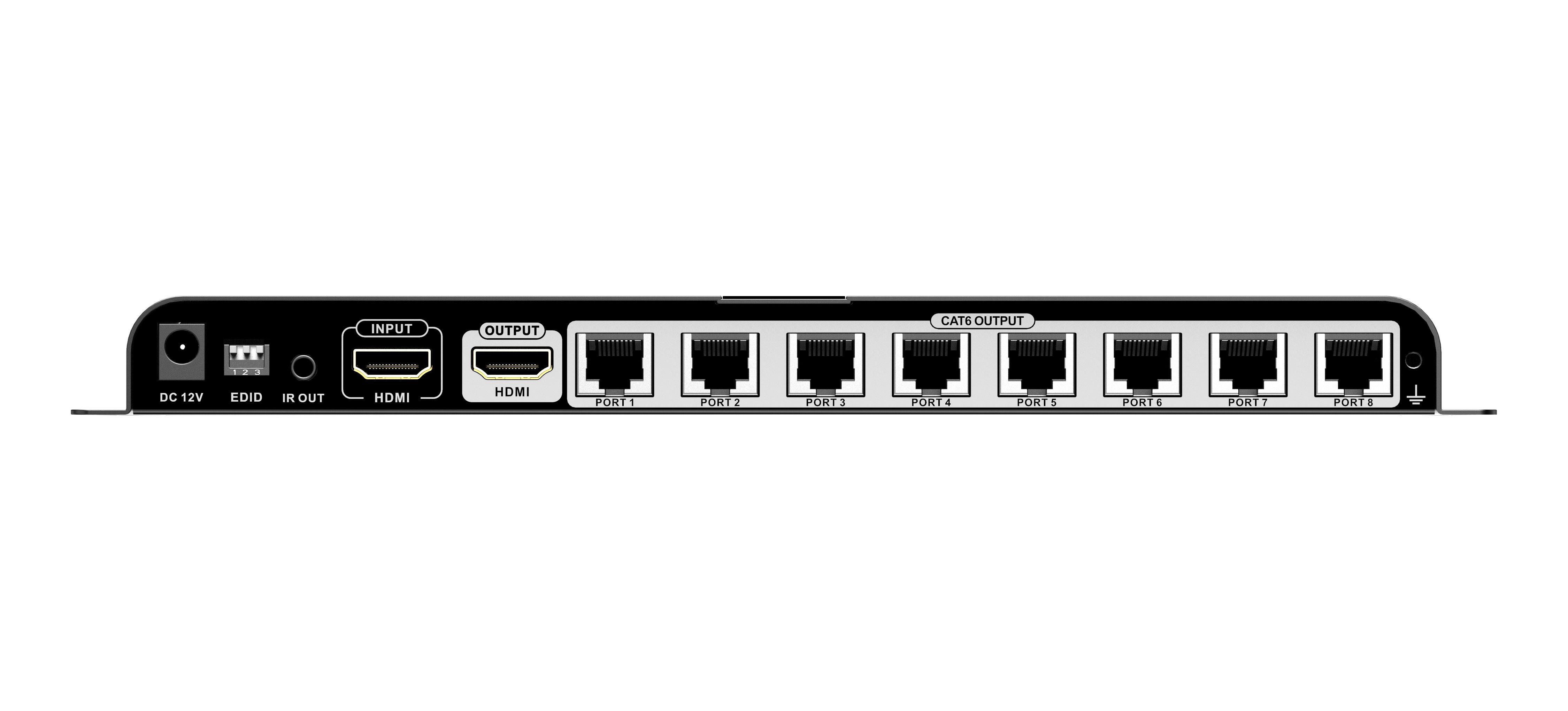

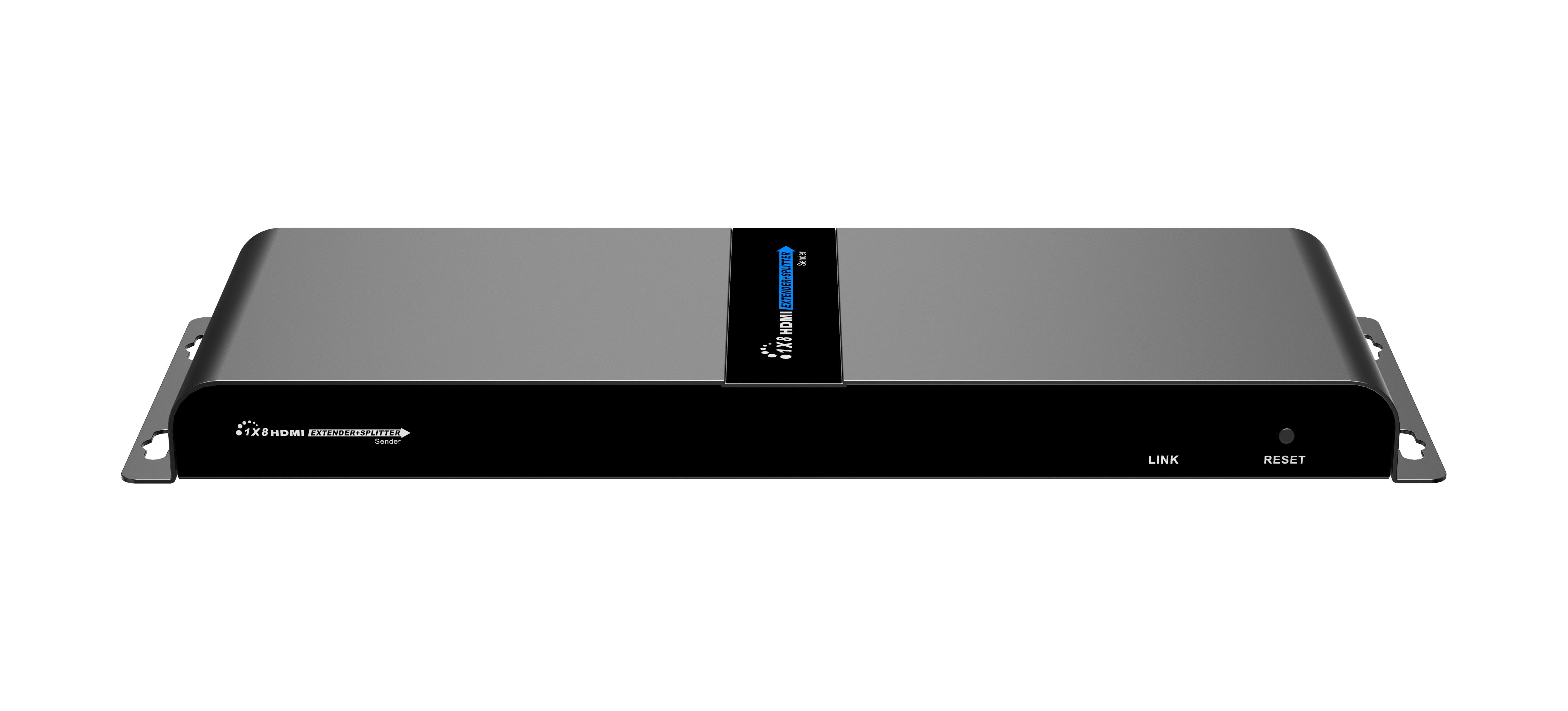

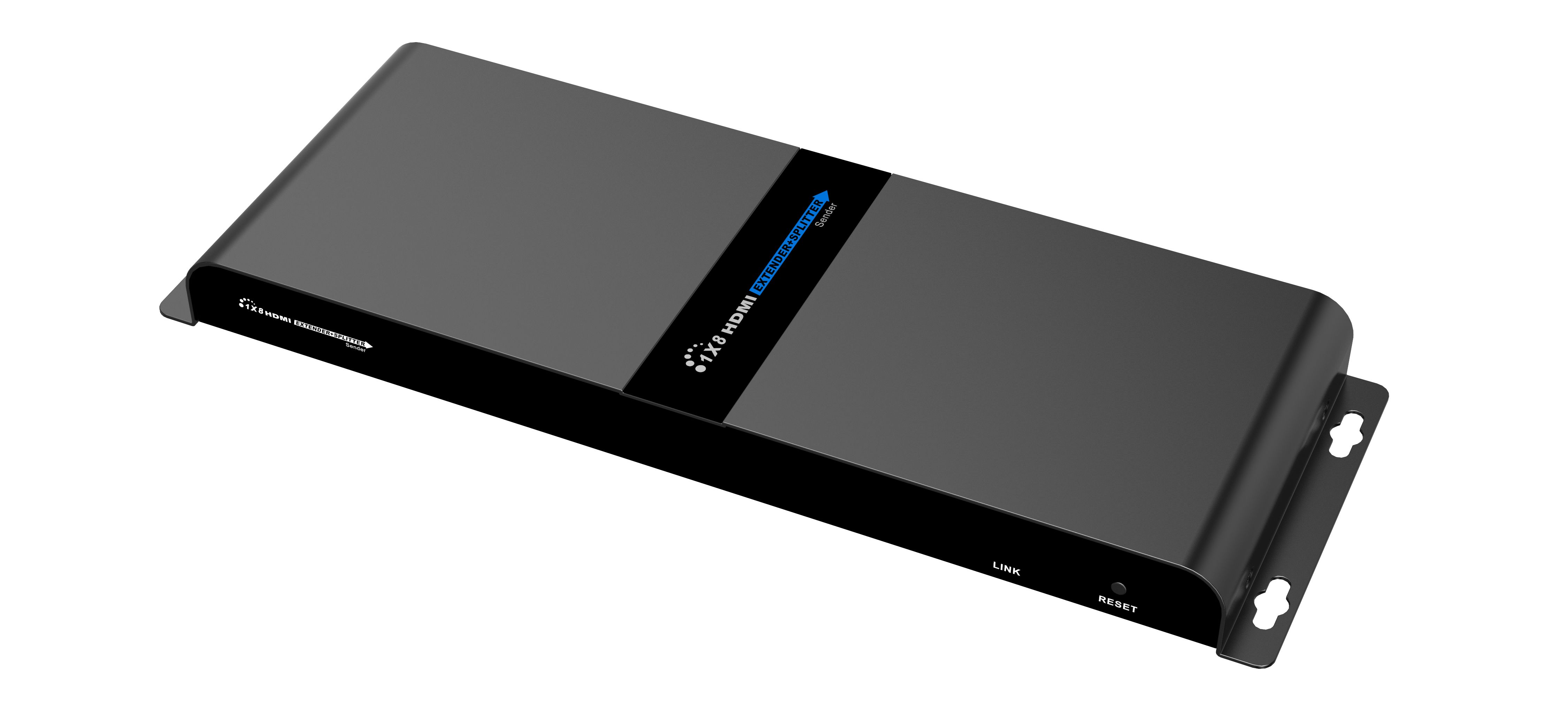

1 x 8 HDMI PoE Extender Splitter over Cat6 to 40m, 1080p


$593.30 List price: $771.20
+

Product Name/Title: 1 x 8 HDMI PoE Extender Splitter over Cat6 to 40m, 1080p

Brand: Certech

SKU: HDMIEXTSP1-840

Alternatively Known As: HDMI Splitter, HDMI Extender, 1x8 HDMI Splitter, HDMI over Ethernet

Technical Specifications
  • HDMI Signal: HDMI1.3, Compatible with HDCP1.2
  • Input: 1 x HDMI
  • Output: 8 x HDMI
  • Supported Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
  • Transmission Distance: Full HD resolution 1080p@60Hz up to 40 metres
  • IR Signal: Supports 20~60kHz IR device
  • EDID: Supports EDID manual setting function
  • Operating Temperature: 0-60 Degrees Celsius
  • Power Supply: DC12V/3A
  • Power Consumption: <24W
  • Dimensions (H x L x W): 23mm x 96mm x 276mm
  • Weight: 0.62 kg
Key Features

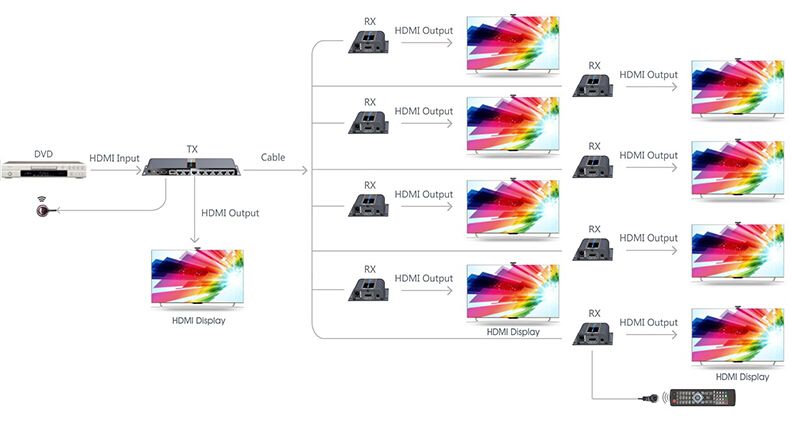

  • Distributes 1 HDMI source to 8 HDMI displays over a single CAT6/6A cable.
  • Supports resolutions up to 1920x1080@60Hz.
  • IR passback and EDID pass through functionality.
  • Plug and play installation.
  • Wall-mounted function for easy installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • HDMI exhibition
  • Video conference
  • Show center
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Reduced electronic waste by using a single power adapter for multiple receivers.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Certech 1 x 8 HDMI PoE Extender Splitter over Cat6 to 40m, 1080p is available now for immediate purchase. Ideal for HDMI exhibitions and video conferencing.

Specification Sheet (hdmiextsp1-840_u.pdf, 255 Kb) [Download]
