Home/Electrical/Lighting/Light Fittings/Downlights/24w PIR Sensor Downlight Non Dimmable

Trade Discount 23%

SKU: AL5011-WHTC24S02-TS

BRAND: 3A Lighting

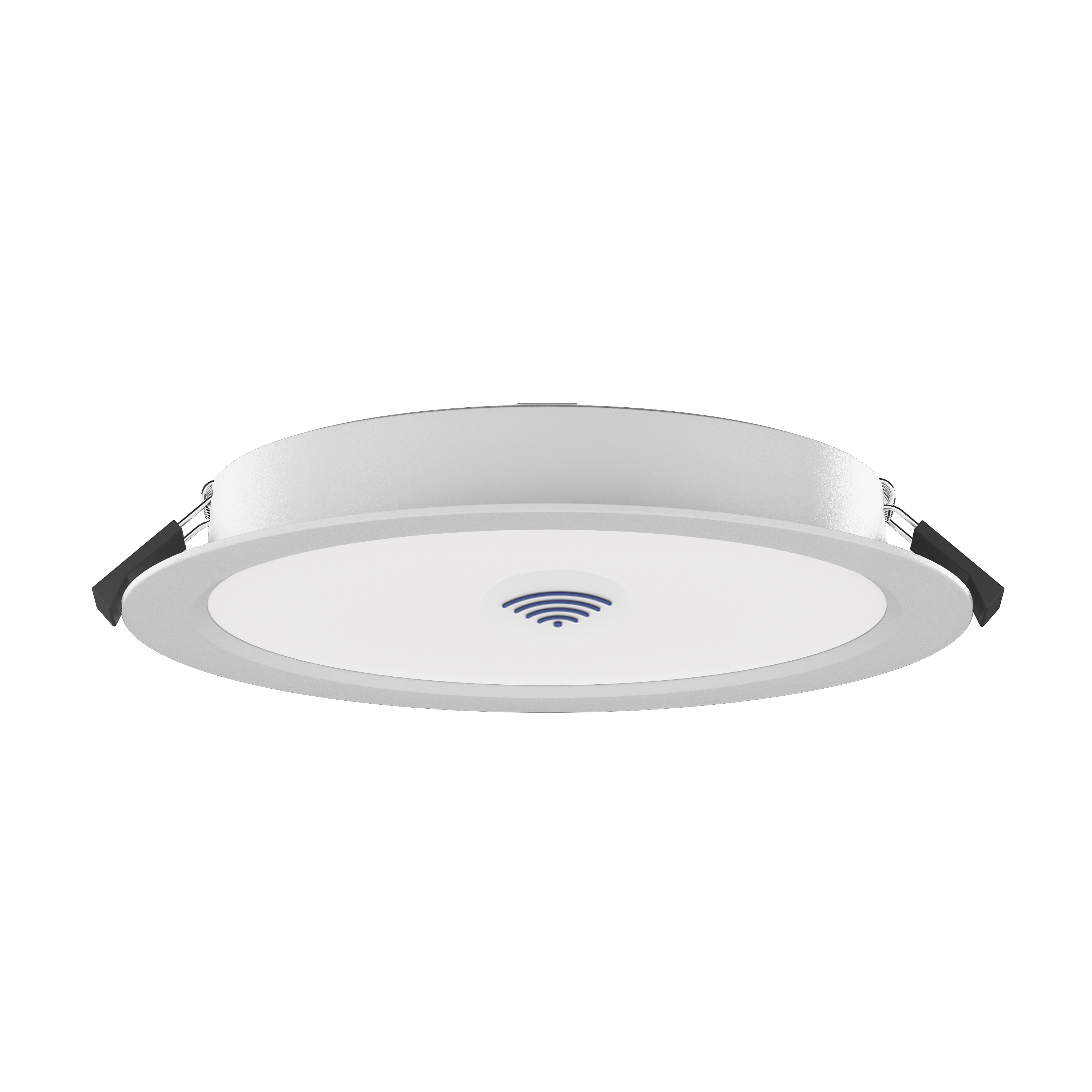

24w PIR Sensor Downlight Non Dimmable

$92.50 List price: $120.60

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: 24w PIR Sensor Downlight Non Dimmable

Brand: 3A Lighting

SKU: AL5011-WHTC24S02-TS

Alternatively Known As: LED sensor downlight, motion sensor downlight, 3CCT LED downlight, 24W LED downlight, Epistar sensor downlight

Technical Specifications

Power: 24W
LED Chip: Epistar SMD
CRI: >90
Input Voltage: AC220-240V 50/60Hz

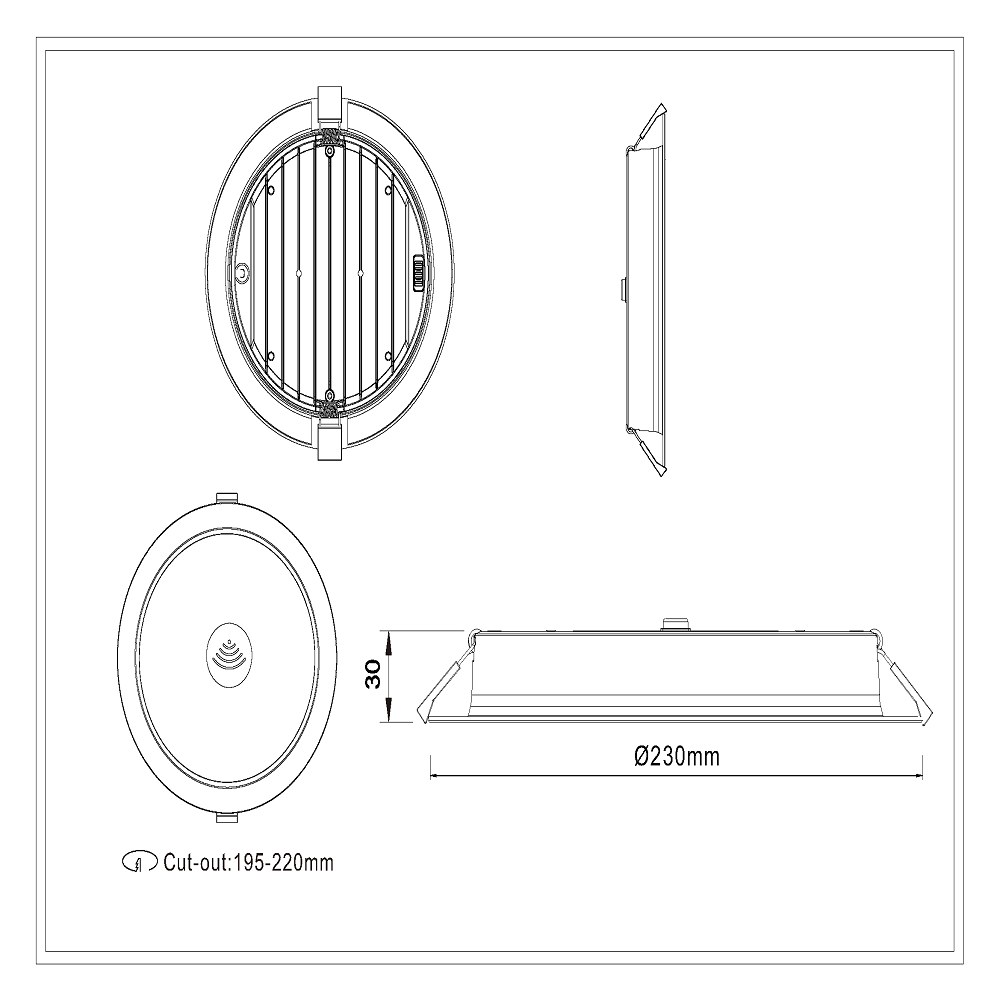

Size: Ø230x30mm
Cut out size: Ø195-220mm
Beam Angle: 100°
Color: White
Selectable 3CCT
Surface IP54
Luminous Flux: 110lm/W
Dimensions (H x L x W): 30mm x 230mm x 230mm
Weight: 0.7 kg

Key Features

24W LED sensor downlight for automatic illumination
Epistar SMD LED chip with high CRI >90 for superior color rendering
Selectable 3CCT (Correlated Color Temperature) for versatile lighting options
Wide 100° beam angle for broad light distribution
Surface IP54 rated for dust and splash resistance
Cut out size adaptable between Ø195-220mm
Long lifespan and energy efficient

Professional Installation Requirements

Professional installation by a licensed electrician is required to ensure safety and compliance with Australian standards.

Applications

Residential: Living rooms, kitchens, hallways, bedrooms
Commercial: Offices, retail stores, hospitality venues
General: Any indoor area requiring energy-efficient sensor-activated lighting

Standards & Compliance

Complies with AS/NZS 60598 for safety and performance standards.
Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment.

Environmental Benefits

Energy-efficient LED technology reduces electricity consumption
Long lifespan minimizes waste and replacement frequency
Sensor activation conserves energy by operating only when needed

Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for residential and commercial spaces requiring energy-efficient, sensor-activated downlighting.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Datasheet (0c4b3e_244ab1892b44459f86d1cc32464ddb07.pdf, 969 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
