Home/Electrical/Lighting/Light Fittings/Downlights/7w LED Downlight Antiglare White

Trade Discount 23%

SKU: DL108-WHTC7S03

BRAND: 3A Lighting

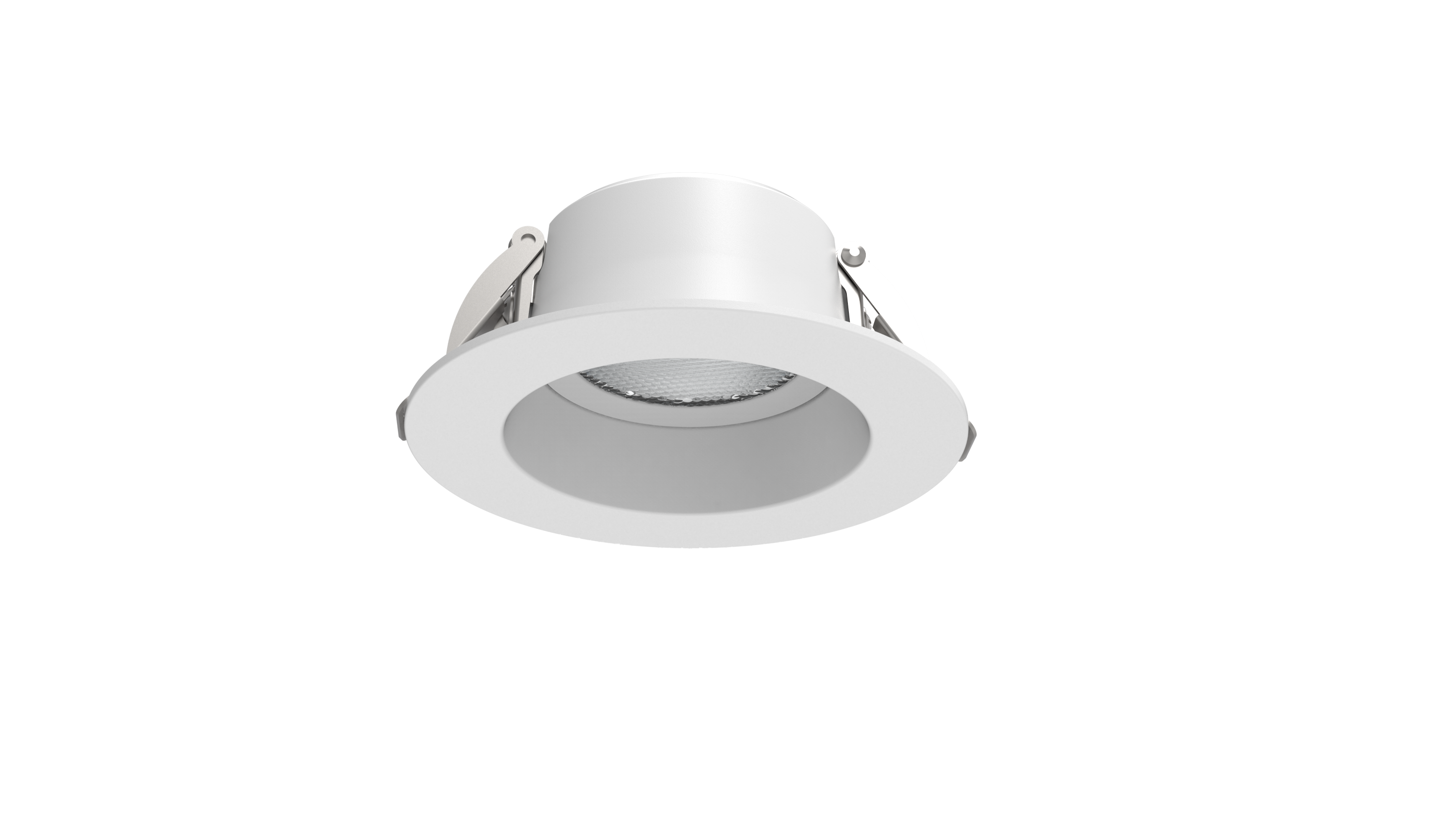

7w LED Downlight Antiglare White

$28.70 List price: $37.40

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: 7w LED Downlight Antiglare White

Brand: 3A Lighting

SKU: DL108-WHTC7S03

Alternatively Known As: LED Downlight, 3CCT Downlight, Epistar Downlight, Low Glare Downlight, UGR19 Downlight, 3A Lighting Downlight

Technical Specifications

LED Chip: Epistar SMD
CRI: >90
Input Voltage: AC220-240V 50/60Hz

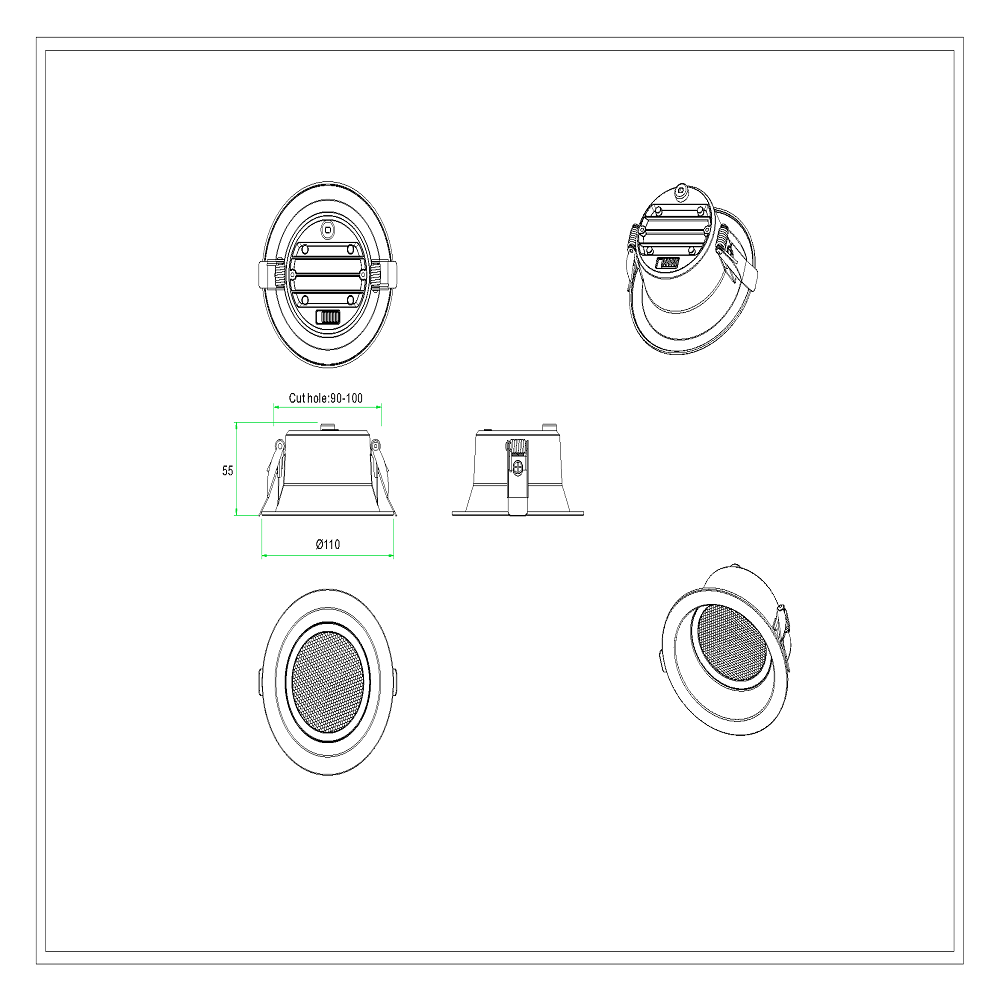

Size: Ø110x55 mm
Cutout: Ø90-100 mm
Beam Angle: 60°
Surface IP Rating: IP54
Color: White
3CCT selectable
UGR: <19
Luminous Flux: 160lm
Dimensions (H x L x W): 55mm x 110mm x 110mm
Weight: 0.3 kg

Key Features

Epistar SMD LED chip for reliable performance
High CRI >90 for superior color rendering
3CCT selectable color temperature
Surface IP54 rated for dust and splash resistance
UGR<19 for low glare lighting
Wide 60° beam angle
Cutout size: Ø90-100 mm

Professional Installation Requirements

Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal safety.

Applications

Residential: Living rooms, bedrooms, kitchens, hallways
Commercial: Offices, retail stores, hospitality venues
General: Any indoor area requiring energy-efficient, high-CRI downlighting

Standards & Compliance

Complies with AS/NZS 60598 for safety and performance standards.
Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).

Environmental Benefits

Energy-efficient LED technology reduces electricity consumption.
Long lifespan minimizes waste and replacement frequency.
High efficacy lighting supports sustainable building practices.

Warranty Information

3 years warranty against manufacturing defects.

Available Now

The 3A Lighting DL108-WHTC7S03 LED Downlight is available for immediate purchase. Ideal for residential and commercial spaces requiring efficient, high-quality lighting.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
