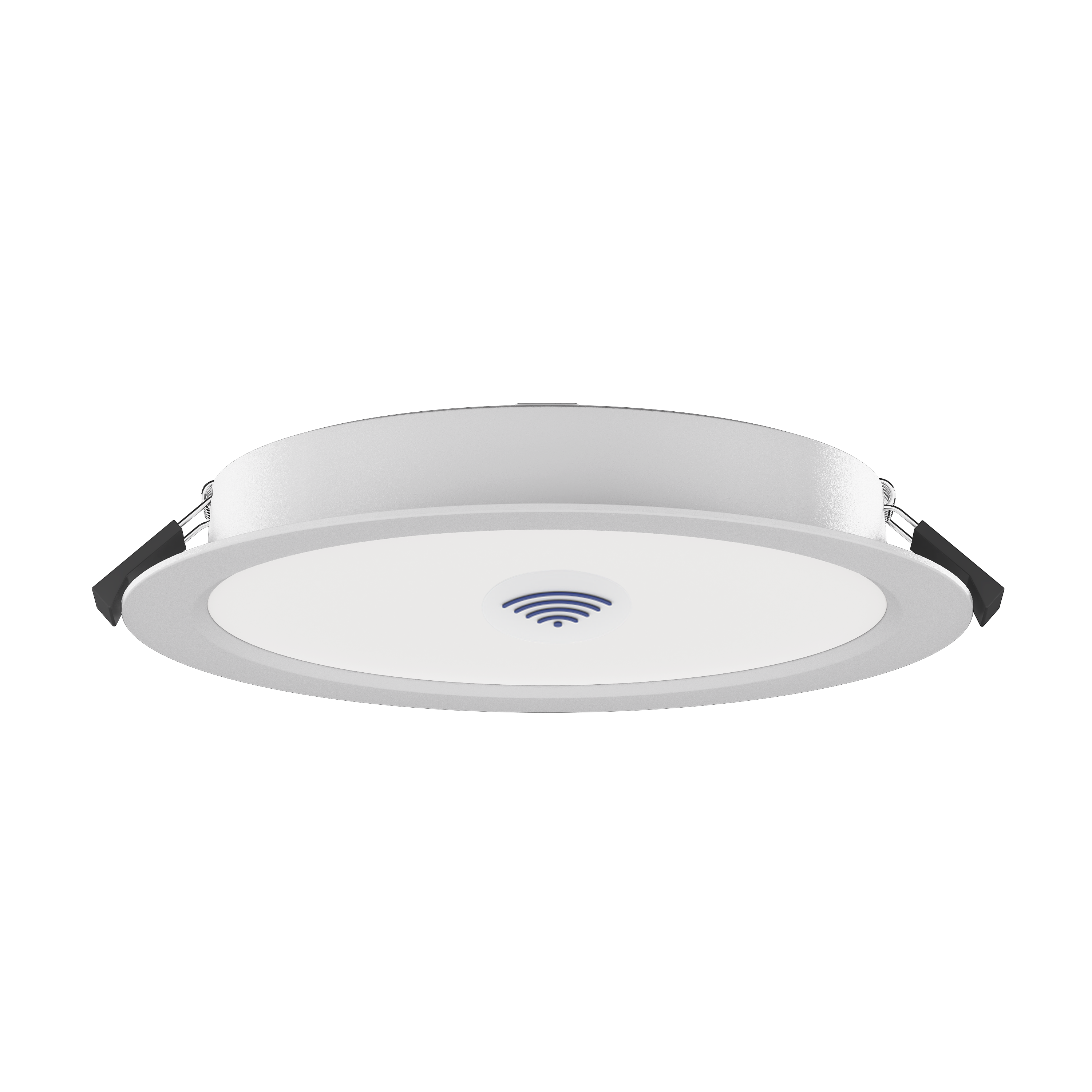

7w PIR Sensor Downlight Not Dimmable

$30.60 List price: $39.90

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: 7w PIR Sensor Downlight Not Dimmable

Brand: 3A Lighting

SKU: AL5006-WHTC7S02-TS

Alternatively Known As: LED sensor downlight, motion sensor downlight, 3A Lighting sensor LED, 3CCT sensor downlight, Epistar sensor downlight

Technical Specifications

Power: 7W
LED Chip: Epistar SMD
CRI: >90
Input Voltage: AC220-240V 50/60Hz

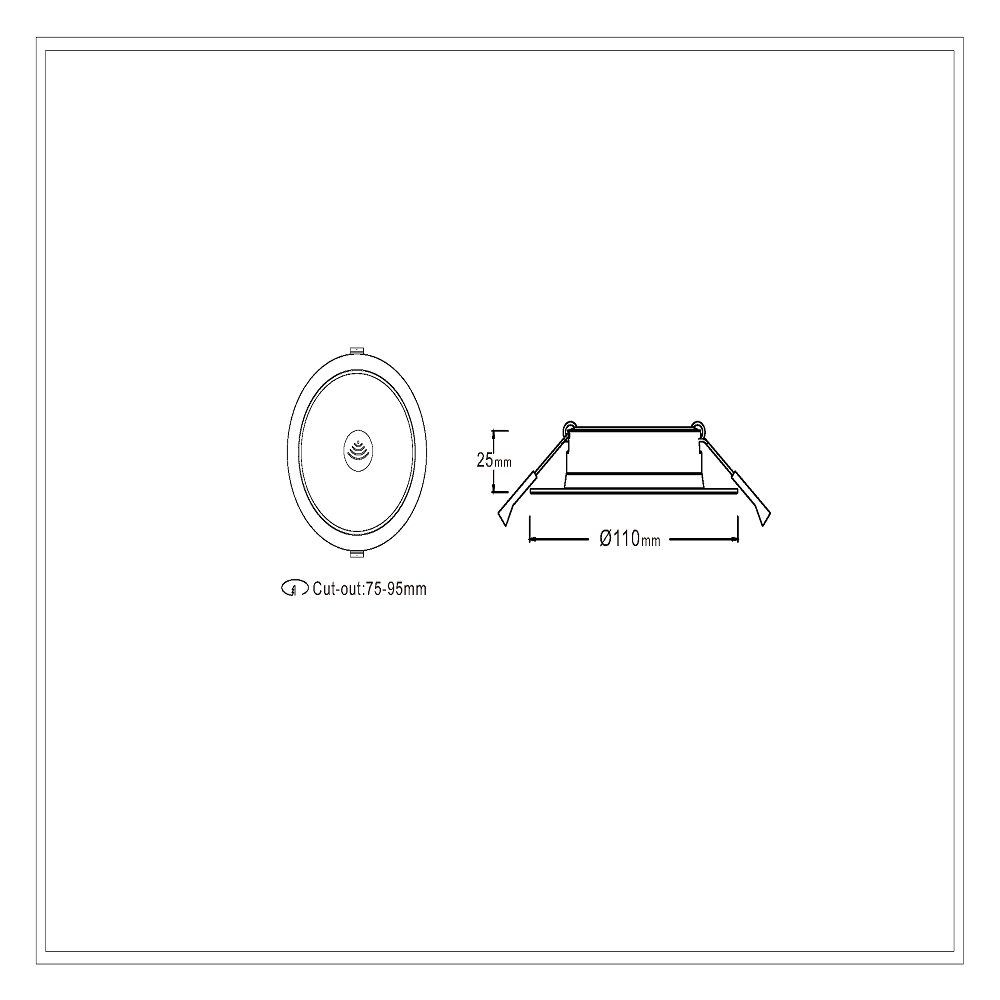

Size: Ø110x25mm
Cut out size: Ø75-95mm
Beam Angle: 100°
Colour: White
Selectable 3CCT
Surface mount
IP Rating: IP54
Luminous Flux: 110lm
Dimensions (H x L x W): 25mm x 110mm x 110mm
Weight: 0.3 kg

Key Features

Integrated LED sensor for automatic operation
7W Epistar SMD LED chip with high CRI >90
Selectable 3CCT (Correlated Colour Temperatures)
Wide 100° beam angle for broad illumination
Surface mount design with IP54 rating for dust and splash resistance
110 lumens output
Cut out size adaptable from Ø75-95mm

Professional Installation Requirements

Professional installation by a licensed electrician is required to ensure compliance with Australian standards and optimal sensor performance.

Applications

Residential: Living rooms, bedrooms, hallways
Commercial: Offices, retail stores, hospitality venues
General: Any indoor area requiring energy-efficient sensor lighting

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment

Environmental Benefits

Energy-efficient LED technology reduces power consumption
Long lifespan minimizes waste and replacement frequency
Automatic sensor operation further conserves energy

Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for energy-efficient, automated lighting in residential and commercial indoor spaces.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Datasheet (0c4b3e_47974cd409374bb19c78b42cde97614b.pdf, 742 Kb) [Download]
