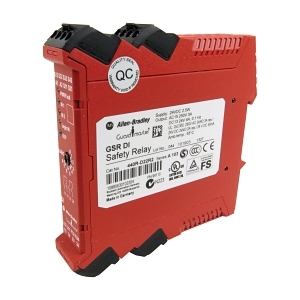

AB 440R GSR DI Safety Relay Dual Input 24VDC 1NC/2NC/OSSD-IN 2NO-SFTY-OUT 1SS-AUX
Trade Discount 25%
The AB 440R GSR DI Safety Relay is designed for dual input monitoring of safety circuits, ensuring reliable operation in emergency stop and position switch applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AB 440R GSR DI Safety Relay Dual Input 24VDC 1NC/2NC/OSSD-IN 2NO-SFTY-OUT 1SS-AUX
Brand: NHP
SKU: 440RD22R2
Alternatively Known As: Safety Relay, GSR Safety Relay, Dual Input Safety Relay
Technical Specifications
- Rated operation current at AC 15 (230 V): 3 A
- Rated operation current at DC 13 (24 V): 4 A
- Type of electric connection: Screw connection
- Degree of protection: IP20
- Max shock acceleration: 10 g
- Max vibration frequency operational: 55 Hz
- Ambient temperature during operating: -5 to 55 °C
- Performance level according to EN ISO 13849-1: Level e
- SIL according to IEC 61508: 3
- Dimensions (H x L x W): 119.4mm x 113.6mm x 22.5mm
- Weight: 0.18 kg
Key Features
- Dual input safety relay for monitoring various safety devices.
- Rated control supply voltage of 24 VDC.
- Safety category according to EN ISO 13849-1: Category 4.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Safety monitoring in machinery and equipment
- Commercial: Emergency stop circuits and position monitoring
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances workplace safety by ensuring proper monitoring of safety circuits.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 440R GSR DI Safety Relay is available now for immediate purchase, ideal for safety monitoring applications.
