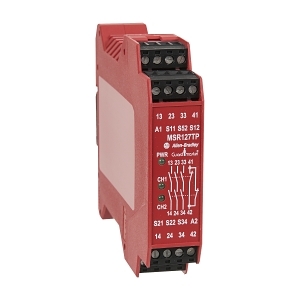

Product Name/Title: AB 440R MSR Safety Relay 230VAC 1NC/2NC/LC 5NO-SFTY AM/MM 1.5-30S
Brand: NHP
SKU: 440RM23148
Alternatively Known As: Safety Relay, MSR Relay, Monitoring Relay
Technical Specifications
- Rated operation current (Ie): 7 A
- Rated operation current at AC 15 (230 V): 6 A
- Rated operation current at DC 13 (24 V): 3 A
- Control supply voltage: 230 V AC
- Number of safety-related outputs: 2
- Degree of protection: IP40
- Max shock acceleration: 10 g
- Max vibration displacement: 0.35 mm
- Max vibration frequency: 55 Hz
- Operating temperature range: -5 to 55 °C
- Dimensions (H x L x W): 99mm x 115mm x 45mm
- Weight: 0.49 kg
Key Features
- Safety category according to EN ISO 13849-1: Category 4
- Performance level according to EN ISO 13849-1: Level e
- IP40 protection degree for the device
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety and compliance.
Applications
- Industrial: Safety monitoring in machinery and equipment
- Commercial: Safety systems in buildings and facilities
Standards & Compliance
- Complies with AS/NZS 4801 for Occupational Health & Safety Management Systems.
Environmental Benefits
- Designed to enhance safety in operational environments, reducing the risk of accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 440R MSR Safety Relay 230VAC is available for immediate purchase, ideal for safety monitoring in industrial applications.
Non-Returnable & Non-Cancellable
