Trade Discount 25%

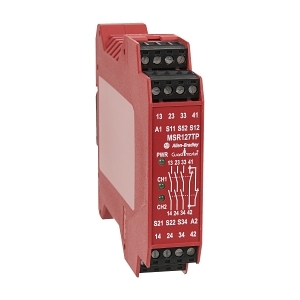

AB 440R MSR Safety Relay 230VAC 1NC/2NC/LC-IN 3NO-SFTY 1NC-AUX AM RTB
The AB 440R MSR Safety Relay is designed for reliable safety monitoring in industrial applications, ensuring compliance with high safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AB 440R MSR Safety Relay 230VAC 1NC/2NC/LC-IN 3NO-SFTY 1NC-AUX AM RTB
Brand: NHP
SKU: 440RN23130
Alternatively Known As: Safety Relay, MSR Relay, NHP Safety Relay
Technical Specifications
- Rated operation current (IE): 5 A
- Rated operation current at AC 15 (230 V): 5 A
- Rated operation current at DC 13 (24 V): 3 A
- Voltage type for actuating: AC
- Control supply voltage at AC 50 Hz: 230 V
- Type of electric connection: Screw connection
- Number of outputs safety-related undelayed with contact: 3
- Rail mounting possible: Yes
- Max shock acceleration: 10 g
- Max vibration displacement PK-PK: 0.35 mm
- Max vibration frequency operational: 55 Hz
- Ambient temperature during operating: -5 to 55 °C
- Dimensions (H x L x W): 99mm x 114.5mm x 22.5mm
- Weight: 0.26 kg
Key Features
- Safety category according to EN ISO 13849-1: Category 4
- Performance level according to EN ISO 13849-1: Level e
- IP40 degree of protection for the device
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Safety monitoring in machinery and equipment
- Commercial: Safety systems in buildings and facilities
Standards & Compliance
- Complies with AS/NZS 4801 for Occupational Health & Safety Management Systems.
Environmental Benefits
- Designed to enhance safety in operational environments, reducing the risk of accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 440R MSR Safety Relay is available now for immediate purchase, ideal for safety monitoring in industrial applications.
