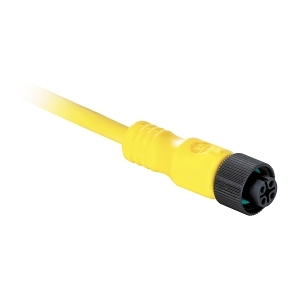

Product Name/Title: AB 889D Cordset Cable PVC Yellow 4 Pin 22AWG DC Micro Female Right Angle M12 Unshielded 15m
Brand: NHP
SKU: 889DR4AC15
Alternatively Known As: M12 Cordset, 4 Pin Micro Cable, DC Micro Connector
- Rated Current: 4 A
- Rated Voltage: 250 V
- Number of Poles: 4
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP69K
- Mounting Method: Freely positionable
- AWG Size: 22
- Cable Diameter: 14 mm
- Operating Temperature: -20-105 °C
- Dimensions (H x L x W): 14mm x 15000mm x 14mm
- Weight: 1.5 kg
- 4-pin female connector for secure connections.
- IP69K rated for high protection against dust and water.
- Professional installation is recommended for optimal performance and safety.
- Industrial: Automation systems, machinery connections
- Commercial: Equipment requiring reliable power connections
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Durable materials reduce the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The AB 889D Cordset Cable PVC Yellow 4 Pin 22AWG DC Micro Female Right Angle M12 15m is available now for immediate purchase, suitable for various industrial and commercial applications.
