SCHNAP Logo

Making Trade Life Easy!
Trade Discount 25%
889DF4ACDE1
BRAND: NHP

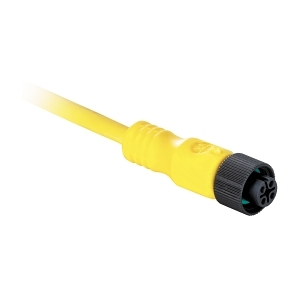

AB 889D Cordset PVC Yellow 4 Pin 22AWG DC Micro Male R-Angle DC Micro Female M12 Straight 1m


$52.80 List price: $70.20
+

Product Name/Title: AB 889D Cordset PVC Yellow 4 Pin 22AWG DC Micro Male R-Angle DC Micro Female M12 Straight 1m

Brand: NHP

SKU: 889DF4ACDE1

Alternatively Known As: DC Micro Connector, M12 Connector, 4 Pin Cordset

Technical Specifications
  • Rated Current: 4 A
  • Rated Voltage: 250 V
  • Number of Poles: 4
  • Type of Plug: Female (bus)
  • Material Housing: Plastic
  • Coating Housing: Uncoated
  • Material Core Insulation: Other
  • Material of Contact Surface: Gold
  • Degree of Protection: IP69K
  • Mounting Method: Freely positionable
  • AWG Size: 22
  • Operating Temperature: -20 to 105 °C
  • Dimensions (H x L x W): n/a mm x 1000mm x n/a mm
  • Weight: 0.3 kg
Key Features
  • 4-pin configuration for versatile connectivity.
  • IP69K rated for high protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Automation and control systems
  • Commercial: Machinery and equipment connections
  • General: Any application requiring a reliable DC micro connection
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 889D Cordset PVC Yellow 4 Pin 22AWG DC Micro is available now for immediate purchase, ideal for industrial and commercial applications.

889DF4ACDE1-AU-PVC-Yellow-Cable-DC-Micro-M12-Datasheet.pdf (889DF4ACDE1-AU-PVC-Yellow-Cable-DC-Micro-M12-Datasheet.pdf, 174 Kb) [Download]
