BRAND: NHP

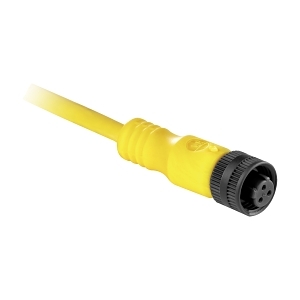

AB 889R Cordset Cable PVC Yellow 3 Pin 22AWG AC Micro Female Straight Braided Shield 2m


$60.10 List price: $79.80
+

Product Name/Title: AB 889R Cordset Cable PVC Yellow 3 Pin 22AWG AC Micro Female Straight Braided Shield 2m

Brand: NHP

SKU: 889RF3ECA2

Alternatively Known As: 3 Pin AC Micro Cable, PVC Yellow Cordset, 22AWG Power Cable

Technical Specifications
  • Rated Current: 4 A
  • Rated Voltage: 250 V
  • Number of Poles: 3
  • Type of Plug: Female (bus)
  • Material Housing: Plastic
  • Coating Housing: Uncoated
  • Material Core Insulation: Other
  • Material of Contact Surface: Gold
  • Degree of Protection: IP69K
  • Mounting Method: Freely positionable
  • AWG Size: 22
  • Cable Diameter: 6.7 mm
  • Cable Length: 2000 mm
  • Operating Temperature: -20-105 °C
  • Dimensions (H x L x W): 7mm x 2000mm x 7mm
  • Weight: 0.5 kg
Key Features
  • IP69K rated for high protection against dust and water.
  • Braided shield for enhanced durability and performance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery and equipment connections
  • Commercial: Electrical installations requiring robust cabling
  • General: Any application needing a reliable power connection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 889R Cordset Cable is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power connections.

889RF3ECA2-AU-PVC-Yellow-Cable-AC-Micro-M12-Datasheet.pdf (889RF3ECA2-AU-PVC-Yellow-Cable-AC-Micro-M12-Datasheet.pdf, 174 Kb) [Download]
