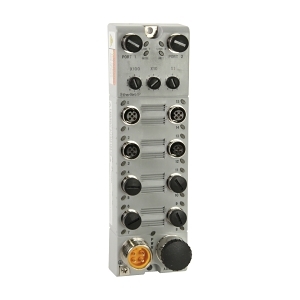

Product Name/Title: AB On Machine Distributed IO Armorblock 24V DC Ethernet Dlr 12Di 4Do Diagnostic Dc Micro Qc5
Brand: NHP
SKU: 1732E12X4M12P5QCDR
Alternatively Known As: Armorblock EtherNet IO, Distributed I/O Module, Digital I/O Module
Technical Specifications
- Type of Digital Output: Transistor
- Input Voltage: 12-30 V DC
- Output Voltage: 12-30 V DC
- Supply Voltage: 24 V DC
- Type of Digital Input: Sinking
- Degree of Protection: IP67/IP69K
- Operating Temperature: -20 to 60 °C
- Storage Temperature: -40 to 85 °C
- Max Ambient Humidity: 95% non-condensing
- Number of Digital Inputs: 12
- Number of Digital Outputs: 4
- Dimensions (H x L x W): 200mm x 45mm x 60mm
- Weight: 1.5 kg
Key Features
- 12 digital inputs and 4 digital outputs for versatile control.
- Supports EtherNet/IP and Device Level Ring (DLR) for enhanced network reliability.
- IP67/IP69K rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation and control systems
- Machine control and monitoring
- Robotics and process automation
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Designed for high durability, reducing the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB On Machine Distributed IO Armorblock is available for immediate purchase, ideal for industrial automation applications.
Non-Returnable & Non-Cancellable
