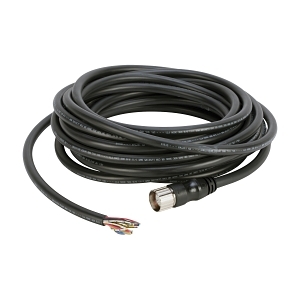

Product Name/Title: AB Pre Wired Connection System Cable PUR Black 19 Pin 18 to 22AWG Female Straight M23 10m
Brand: NHP
SKU: 889MF19RM10
Alternatively Known As: M23 Connector Cable, 19 Pin Connection Cable, PUR Cable
Technical Specifications
- Rated Current: 8 A
- Rated Voltage: 63 V
- Number of Poles: 19
- Type of Plug-in Contact: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP68
- Mounting Method: Freely positionable
- AWG Size: 22
- Cable Diameter: 12.1 mm
- Cable Length: 10000 mm
- Operating Temperature: -20 to 105 °C
- Dimensions (H x L x W): n/a mm x 10000mm x n/a mm
- Weight: 1.0 kg
Key Features
- 19-pin female connector for reliable connections.
- IP68 rated for protection against dust and water ingress.
- Operating temperature range of -20 to 105 °C.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Machinery and equipment connections
- Commercial: Automation systems and control panels
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB Pre Wired Connection System Cable PUR Black 19 Pin 18 to 22AWG Female Straight M23 10m is available now for immediate purchase. Ideal for industrial and commercial applications.
