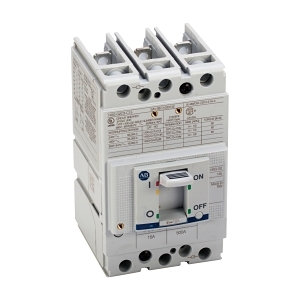

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 3P 80A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG2C3C80
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 80A
Technical Specifications
- Rated ultimate short circuit breaking capacity: 36 kA at 415 V, 50 Hz
- Rated service short circuit breaking capacity: 36 kA at 415 V, 50 Hz
- Rated insulation voltage: 800 V
- Rated frequency: 50-60 Hz
- Electrical life: 8000 cycles
- Mechanical life: 25000 cycles
- Power loss: 33.1 W
- Rated surrounding temperature without derating: 40 °C
- Maximum operating temperature: 75 °C
- Storage temperature: -40 to 80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 130mm x 101mm x 101.2mm
- Weight: 1.4 kg
Key Features
- Rated current: 110 A
- 36 kA short circuit breaking capacity
- Thermal/magnetic release trip unit
- Fixed thermal and magnetic trip curve
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB G Frame 36kA 3P 80A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
