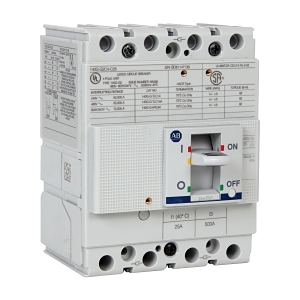

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 4P 80A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG2C4C80
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 80A
Technical Specifications
- Rated current: 80 A
- Number of poles: 4
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 36 kA
- Rated service short circuit breaking capacity: 36 kA
- Type of protection trip unit: Thermal/magnetic release
- Trip curve: Fixed thermal, fixed magnetic
- Frame size rating: 160 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Suitable for isolation: Yes
- Rated short circuit breaking capacity at 690 V AC: 6 kA
- Rated impulse withstand voltage: 8 kV
- Electrical life at rated current: 8000 cycles
- Power loss: 19.2 W
- Mechanical life service cycles: 25000 cycles
- Rated surrounding temperature without derating: 40 °C
- Maximum operating temperature: 75 °C
- Storage temperature: -40-80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 130mm x 101mm x 101.2mm
- Weight: 1.4 kg
Key Features
- Rated current: 80 A
- 4 poles for versatile applications
- Thermal/magnetic release for reliable protection
- Fixed thermal and magnetic trip curve
- High breaking capacity of 36 kA
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB G Frame 36kA 4P 80A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
