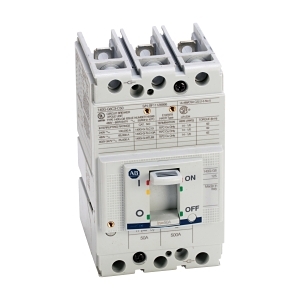

Product Name/Title: Allen-Bradley 140G MCCB G Frame 70kA 3P 60A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG6C3C60
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 60 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 35 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 11.7 W
- Suitable for Isolation: Yes
- Reverse Connection of Supply Possible: Yes
- Dimensions (H x L x W): 130mm x 101mm x 76.2mm
- Weight: 1.1 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 70 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Power distribution systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB G Frame 70kA 3P 60A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
Non-Returnable & Non-Cancellable
