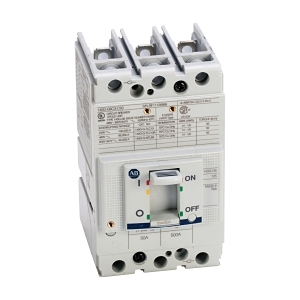

Allen-Bradley 140G MCCB G Frame 70kA 3P 90A Fixed Thermal Magnetic

SKU: 140GG6C3C90

BRAND: NHP

Allen-Bradley 140G MCCB G Frame 70kA 3P 90A Fixed Thermal Magnetic

$683.60 List price: $907.70

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB G Frame 70kA 3P 90A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GG6C3C90

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 90A

Technical Specifications

Rated ultimate short circuit breaking capacity: 70 kA at 415 V, 50 Hz
Rated service short circuit breaking capacity: 35 kA at 415 V, 50 Hz
Rated insulation voltage: 800 V
Rated frequency: 50-60 Hz
Electrical life: 8000 cycles
Mechanical life: 25000 cycles
Power loss: 17 W
Rated impulse withstand voltage: 8 kV
Maximum operating temperature: 75 °C
Storage temperature: -40 to 80 °C
Max altitude before derating: 2000 m
Dimensions (H x L x W): 130mm x 101mm x 76.2mm
Weight: 1.1 kg

Key Features

Rated current: 90 A
70 kA short circuit breaking capacity
Thermal/magnetic release trip unit
Fixed thermal and magnetic trip curve
Suitable for isolation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
Electrical: Suitable for use in various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS 60950 for safety of electrical equipment.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Allen-Bradley 140G MCCB G Frame 70kA 3P 90A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and electrical applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

140GG6C3C90-AU-140G-MCCB-G-Frame-Datasheet.pdf (140GG6C3C90-AU-140G-MCCB-G-Frame-Datasheet.pdf, 277 Kb) [Download]
