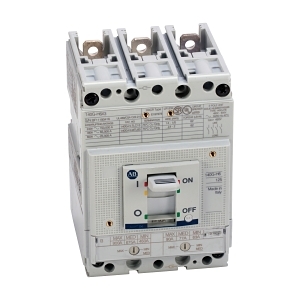

Allen-Bradley 140G MCCB H Frame 70kA 3P 90A Adjustable Thermal Magnetic

SKU: 140GH6F3C90

BRAND: NHP

Allen-Bradley 140G MCCB H Frame 70kA 3P 90A Adjustable Thermal Magnetic

$778.30 List price: $1,033.50

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 3P 90A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GH6F3C90

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 90 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 63-90 A
Instantaneous Protection Adjustment Range: 450-900 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 15 kA
Rated Short Circuit Breaking Capacity (ICS): 15 kA
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 19.7 W
Rated Surrounding Temperature: -40 to 75 °C
Dimensions (H x L x W): 130mm x 116mm x 90mm
Weight: 1.2 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA for reliable short circuit protection.
Suitable for isolation and can handle reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in electrical systems
Commercial: Suitable for various commercial electrical installations

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame 70kA 3P 90A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GH6F3C90-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH6F3C90-AU-140G-MCCB-H-Frame-Datasheet.pdf, 497 Kb) [Download]
