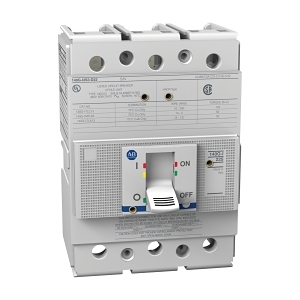

Product Name/Title: Allen-Bradley 140G MCCB I Frame 35kA 3P 225A Moulded Case Switch Isolator
Brand: NHP
SKU: 140GI3S3D22
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker Isolator
Technical Specifications
- Rated current: 225 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 50 kA
- Rated service short circuit breaking capacity: 25 kA
- Type of protection trip unit: Non auto-switch
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Suitable for isolation: Yes
- Rated short circuit breaking capacity: 6 kA at 690 V AC
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Power loss: 43.2 W
- Mechanical life: 25000 cycles
- Rated surrounding temperature: -40 to 75 °C
- Dimensions (H x L x W): 150mm x 101mm x 105mm
- Weight: 1.7 kg
Key Features
- Rated current: 225 A
- Three poles for versatile applications
- High breaking capacity of 50 kA at 415 V
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Manufacturing facilities, machinery protection
- Commercial: Electrical distribution systems, switchgear applications
Standards & Compliance
- Complies with AS/NZS 60950 for safety of electrical equipment.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Allen-Bradley 140G MCCB I Frame 35kA 3P 225A Moulded Case Switch Isolator is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
