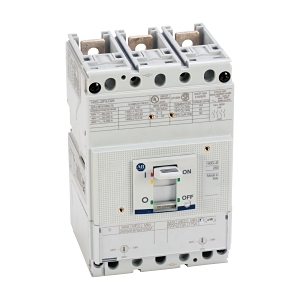

Allen-Bradley 140G MCCB J Frame 36kA 3P 100A Adjustable Thermal Magnetic

SKU: 140GJ2F3D10

BRAND: NHP

Allen-Bradley 140G MCCB J Frame 36kA 3P 100A Adjustable Thermal Magnetic

$1,140.50 List price: $1,514.40

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame 36kA 3P 100A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GJ2F3D10

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Protection Device

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 18.6 W
Rated Surrounding Temperature: 40 °C
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 160mm x 117mm x 105mm
Weight: 2.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 36 kA for reliable short circuit protection.
Suitable for isolation and can handle reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS 60950 for safety of electrical equipment.

Environmental Benefits

Designed for long electrical life, reducing the need for frequent replacements and waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame 36kA 3P 100A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable

140GJ2F3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf (140GJ2F3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf, 286 Kb) [Download]
