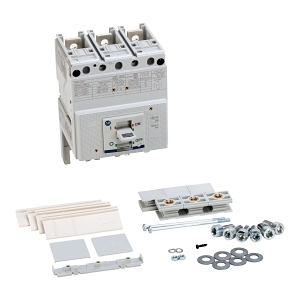

Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Adjustable Thermal Magnetic

SKU: 140GJ3F3D10

BRAND: NHP

Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Adjustable Thermal Magnetic

$1,425.80 List price: $1,893.30

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GJ3F3D10

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 18.6 W
Suitable for Isolation: Yes
Dimensions (H x L x W): 160mm x 117mm x 105mm
Weight: 2.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 50 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.

Non-Returnable & Non-Cancellable

140GJ3F3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf (140GJ3F3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf, 514 Kb) [Download]
