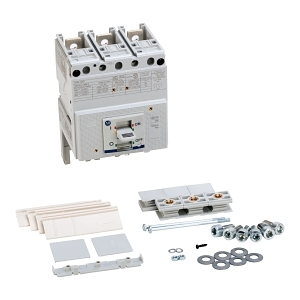

Product Name/Title: Allen-Bradley 140G MCCB J Frame 50kA 3P 30A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GJ3C3C30
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 30 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 12 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: -40 to 40 °C
- Maximum Operating Temperature: 75 °C
- Dimensions (H x L x W): 160mm x 117mm x 105mm
- Weight: 2.5 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 50 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection, power distribution
- Commercial: Electrical panels, machinery
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame 50kA 3P 30A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
