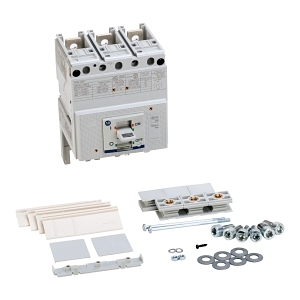

Product Name/Title: Allen-Bradley 140G MCCB J Frame Less Trip Unit 25kA 3P
Brand: NHP
SKU: 140GJ2X3
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, 140G MCCB
Technical Specifications
- Rated current: 250 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 25 kA at 415 V
- Rated service short circuit breaking capacity: 36 kA at 415 V
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 1000 V
- Rated short circuit breaking capacity: 10 kA at 690 V
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Maximum operating temperature: 75 °C
- Storage temperature: -40 to 80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 150mm x 117mm x 105mm
- Weight: 5 kg
Key Features
- Rated current: 250 A
- 25 kA short circuit breaking capacity at 415 V
- 3-pole configuration
- Rated insulation voltage: 1000 V
- Mechanical life: 25,000 cycles
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame Less Trip Unit 25kA 3P is available now for immediate purchase. Ideal for industrial and commercial applications, ensuring reliable circuit protection.
