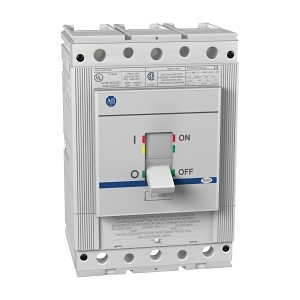

Product Name/Title: Allen-Bradley 140G MCCB K Frame Less Trip Unit 150kA 3P
Brand: NHP
SKU: 140GK15X3
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 400A
Technical Specifications
- Rated current: 400 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 150 kA
- Rated service short circuit breaking capacity: 200 kA
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 1000 V
- Rated short circuit breaking capacity: 80 kA at 690 V
- Rated impulse withstand voltage: 8 kV
- Electrical life: 7000 cycles
- Mechanical life: 20000 cycles
- Max operating temperature: 75 °C
- Storage temperature: -40 to 80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 200mm x 140mm x 140mm
- Weight: 10 kg
Key Features
- Rated current: 400 A
- Short circuit breaking capacity: 150 kA at 415 V
- Three-pole configuration
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 60950 for safety of electrical equipment.
Environmental Benefits
- Designed for high efficiency, reducing energy loss in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB K Frame Less Trip Unit 150kA 3P is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
