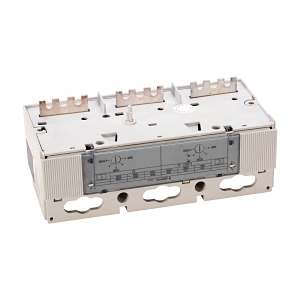

Allen-Bradley 140G MCCB M Frame Trip Unit 3P 600A Fixed Thermal Magnetic

SKU: 140GMTF3D60

BRAND: NHP

Allen-Bradley 140G MCCB M Frame Trip Unit 3P 600A Fixed Thermal Magnetic

$1,409.80 List price: $1,872.00

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB M Frame Trip Unit 3P 600A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GMTF3D60

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Trip Unit

Technical Specifications

Rated Current: 600 A
Number of Poles: 3
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 800 A
Long Time Overload Protection Adjustment Range: 420-600 A
Instantaneous Protection Adjustment Range: 3000-6000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 300mm x 150mm x 210mm
Weight: 10 kg

Key Features

600 A rated current with thermal/magnetic release for enhanced protection.
Adjustable thermal and magnetic trip curves for customized settings.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures, reducing energy waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame Trip Unit 3P 600A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

140GMTF3D60-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GMTF3D60-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 230 Kb) [Download]
