140GMTF4D80
BRAND: NHP

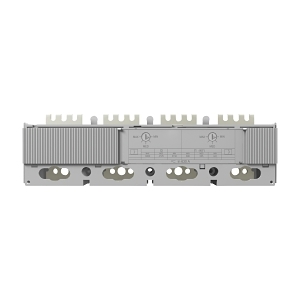

Allen-Bradley 140G MCCB M Frame Trip Unit 4P 800A Fixed Thermal Magnetic


$1,860.00 List price: $2,469.90
+

Product Name/Title: Allen-Bradley 140G MCCB M Frame Trip Unit 4P 800A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GMTF4D80

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Trip Unit

Technical Specifications
  • Rated Current: 800 A
  • Number of Poles: 4
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 800 A
  • Long Time Overload Protection Adjustment Range: 580-800 A
  • Instantaneous Protection Adjustment Range: 4000-8000 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 1000 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Maximum Operating Temperature: 75 °C
  • Storage Temperature: -40 to 80 °C
  • Max Altitude Before Derating: 2000 m
  • Dimensions (H x L x W): 200mm x 300mm x 280mm
  • Weight: 10 kg
Key Features
  • 800A rated current with thermal/magnetic release for reliable protection.
  • Adjustable thermal and magnetic trip curves for customized settings.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in large buildings
  • General: Protection of electrical circuits in various applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss in electrical systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame Trip Unit 4P 800A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GMTF4D80-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GMTF4D80-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 172 Kb) [Download]
