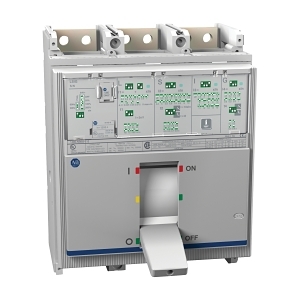

Allen-Bradley 140G MCCB N Frame 70kA 3P 1200A Electronic LSIG Maintenance Instantaneous

SKU: 140GN6K3E12

BRAND: NHP

Allen-Bradley 140G MCCB N Frame 70kA 3P 1200A Electronic LSIG Maintenance Instantaneous

$14,245.30 List price: $18,915.90

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB N Frame 70kA 3P 1200A Electronic LSIG Maintenance Instantaneous

Brand: NHP

SKU: 140GN6K3E12

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 1200A

Technical Specifications

Rated Current: 1200 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSIG
Long Time Overload Protection Adjustment Range: 480-1200 A
Instantaneous Protection Adjustment Range: 1800-18000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity: 42 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 2000 cycles
Mechanical Life: 10000 cycles
Power Loss: 252 W
Dimensions (H x L x W): 268mm x 225mm x 210mm
Weight: 9.7 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection for enhanced safety.
High short-circuit breaking capacity of 70 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Efficient design reduces energy loss and enhances system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB N Frame 70kA 3P 1200A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

140GN6K3E12-AU-140G-MCCB-N-Frame-Datasheet.pdf (140GN6K3E12-AU-140G-MCCB-N-Frame-Datasheet.pdf, 428 Kb) [Download]
