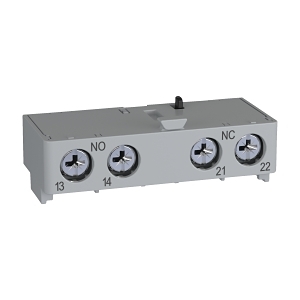

Product Name/Title: Allen-Bradley 140MT Trip Contact 1NO Contact Auxiliary 1NC Contact Front Mount
Brand: NHP
SKU: 140MTCAFAR10A01
Alternatively Known As: 140MT Auxiliary Contact, Motor Protection Circuit Breaker Contact
Technical Specifications
- Number of NO contacts: 1
- Number of NC contacts: 1
- Rated insulation voltage: 250 V
- Rated operation current at 40°C: 5 A
- Rated operation current at AC 15, 24 V: 4 A
- Rated operation current at AC 15, 120 V: 3 A
- Rated operation current at AC 15, 240 V: 1.5 A
- Rated operation current at DC 13, 24 V: 1.2 A
- Rated operation current at DC 13, 125 V: 0.22 A
- Rated operation current at DC 13, 250 V: 0.11 A
- Mounting method: Front fastening
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatile applications.
- Rated insulation voltage of 250 V for reliable performance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection and control systems
- Commercial: Equipment requiring auxiliary contacts
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of equipment failure.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140MT Trip Contact is available now for immediate purchase, ideal for motor protection and control applications.
