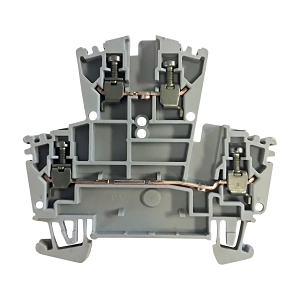

Product Name/Title: Allen-Bradley 1492-J Screw Connection Terminal 2.5mm 2 Level 4 Conductor Entries Grey
Brand: NHP
SKU: 1492JD3
Alternatively Known As: Screw Terminal Block, Feed-through Terminal Block
Technical Specifications
- Type of electrical connection: Screw connection
- Rated current: 24 A
- Rated voltage: 400 V
- Number of levels: 2
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Inflammability class of insulation material: V0
- Nominal tightening torque: 0.8 Nm
- Wire conductor size: 0.5-2.5 mm
- Wire strip length: 10 mm
- Insulation temperature: -50-120 °C
- Dimensions (H x L x W): 72.5mm x 59.3mm x 5.1mm
- Weight: 0.1 kg
Key Features
- Screw connection for secure and reliable electrical connections.
- Rated for 24 A and 400 V, suitable for a wide range of applications.
- Two levels with two clamp positions per level for efficient wiring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for use in control panels and electrical installations.
- Commercial: Ideal for various electrical connection needs.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety standards.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 1492-J Screw Connection Terminal is available now for immediate purchase, ideal for industrial and commercial electrical applications.
