194EY25M17536N
BRAND: NHP

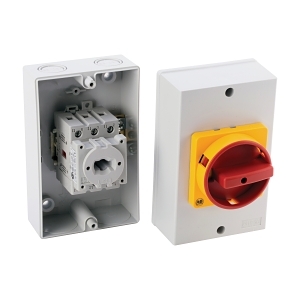

Allen-Bradley 194E Enclosed Disconnect Switch IP 65 Plastic, Type N Actuator Red/Yellow, 3 Pole 25A


$242.50 List price: $322.00
+

Product Name/Title: Allen-Bradley 194E Enclosed Disconnect Switch IP 65 Plastic, Type N Actuator Red/Yellow, 3 Pole 25A

Brand: NHP

SKU: 194EY25M17536N

Alternatively Known As: Disconnect Switch, Enclosed Switch, 3 Pole Switch

Technical Specifications
  • Max Rated Operation Voltage: 690 V
  • Rated Permanent Current: 25 A
  • Number of Poles: 3
  • Frequency: 50/60 Hz
  • Rated Operation Power at AC 3 400 V: 7.5 kW
  • Rated Operation Power at AC 23 400 V: 11 kW
  • Rated Short Time Withstand Current: 900 kA
  • Rated Insulation Voltage: 690 V
  • Type of Control Element: Long turning handle
  • Type of Electrical Connection: Screw connection
  • Conditioned Rated Short Circuit Current: 20 kA
  • Interlockable: Yes
  • Dimensions (H x L x W): 150mm x 86mm x 95mm
  • Weight: 1.5 kg
Key Features
  • IP65 rated for protection against dust and water ingress.
  • 3 pole design with a rated current of 25A.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for use in manufacturing and processing plants
  • Commercial: Ideal for commercial electrical installations
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable plastic housing reduces environmental impact compared to metal alternatives.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Enclosed Disconnect Switch IP 65 is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

194EY25M17536N-AU-194E-Enclosed-Disconnect-Switch-3P-Datasheet.pdf (194EY25M17536N-AU-194E-Enclosed-Disconnect-Switch-3P-Datasheet.pdf, 247 Kb) [Download]
