BRAND: NHP

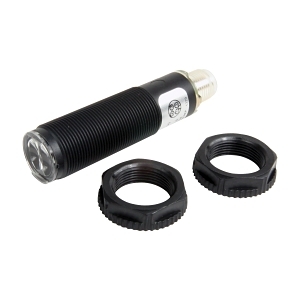

Allen-Bradley 42CA Photoelectric Sensor Diffuse 10-30V DC Range 0-100mm PNP DC Micro 4


$148.50 List price: $197.20
+

Product Name/Title: Allen-Bradley 42CA Photoelectric Sensor Diffuse 10-30V DC Range 0-100mm PNP DC Micro 4

Brand: NHP

SKU: 42CAD1MPAED4

Alternatively Known As: Diffuse Photoelectric Sensor, Infrared Photo Sensor, PNP Photoelectric Switch

Technical Specifications
  • Voltage Type: DC
  • Rated Control Supply Voltage: 10-30 V
  • Type of Switching Output: PNP
  • Max Output Current: 0.1 mA
  • Response Time: 1 ms
  • Type of Electric Connection: Connector M12
  • Number of Conductors: 4
  • Material of Optical Surface: Plastic
  • Material Housing: Plastic
  • Construction Type Housing: Cylinder, screw-thread
  • Degree of Protection: IP67
  • Sensing Type: Standard diffuse
  • Type of Light: Infrared light
  • Wavelength of the Sensor: 880 nm
  • Beam Angle Field of View: 3 °
  • Sensing Mode: Light-/dark switching
  • Operating Distance: 0-100 mm
  • Diameter Sensor: 18 mm
  • Thread Size: 18 mm
  • Ambient Temperature: -25-70 °C
  • Dimensions (H x L x W): 74.5mm x 18mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Standard diffuse sensing type with a maximum switching distance of 100 mm.
  • IP67 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation
  • Conveyor systems
  • Packaging machinery
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 42CA Photoelectric Sensor is available now for immediate purchase, ideal for various industrial applications.

42CAD1MPAED4-AU-Photoelectric-Sensor-Datasheet.pdf (42CAD1MPAED4-AU-Photoelectric-Sensor-Datasheet.pdf, 232 Kb) [Download]
