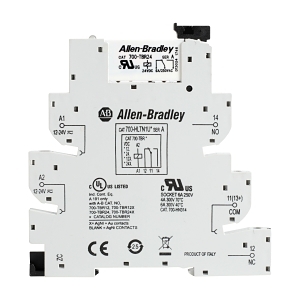

Allen-Bradley 700-HL Interface Relay 6A 1CO SPDT 110V and 125VAC DC Standard Silver Contacts

BRAND: NHP
SKU: 700HLT1U1
$63.20 List price: $84.00
+ −
30 Days Return Delivery Options
The Allen-Bradley 700-HL Interface Relay offers reliable switching capabilities with a nominal current of 6A and is designed for both AC and DC applications, ensuring efficient control in various industrial settings.

Product Name/Title: Allen-Bradley 700-HL Interface Relay 6A 1CO SPDT 110V and 125VAC DC Standard Silver Contacts

Brand: NHP

SKU: 700HLT1U1

Alternatively Known As: Interface Relay, SPDT Relay, 700-HL Relay

Technical Specifications
  • Nominal Current: 6 A
  • Nominal Voltage AC: 250 V
  • Number of Contacts: 1 CO (Change Over)
  • Rated Switching Power at AC 1: 1500 VA
  • Rated Switching Power at AC 15 230 V: 300 VA
  • Breaking Capacity at DC 1 30 V: 6 A
  • Voltage Type for Actuating: AC/DC
  • Control Supply Voltage at AC 50 Hz: 125 V
  • Rated Control Supply Voltage at AC 50 Hz: 110-125 V
  • Control Supply Voltage at DC: 125 V
  • Rated Control Supply Voltage at DC: 110-125 V
  • Rated Control Supply Voltage at AC 60 Hz: 110-125 V
  • Control Supply Voltage at AC 60 Hz: 125 V
  • With LED Indication: Yes
  • Type of Electric Connection: Screw connection
  • Electrical Life at Un in Service: 100,000 cycles
  • Operating Voltage: 93.5-121 V
  • Material Contact: Silver tin-oxide
  • Complete with Socket: Yes
  • Suitable for Plug-in Socket Mounting: Yes
  • Degree of Protection: IP20
  • Mechanical Life Service Cycles: 10,000,000 cycles
  • Operating Temperature: -40-55 °C
  • Dimensions (H x L x W): 88mm x 76mm x 62mm
  • Weight: 0.5 kg
Key Features
  • 6A nominal current with SPDT configuration.
  • LED indication for operational status.
  • Suitable for plug-in socket mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: Building management systems, HVAC controls
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 700-HL Interface Relay is available now for immediate purchase, ideal for industrial automation and control applications.

700HLT1U1-AU-Interface-Relay-Datasheet.pdf (700HLT1U1-AU-Interface-Relay-Datasheet.pdf, 262 Kb) [Download]
