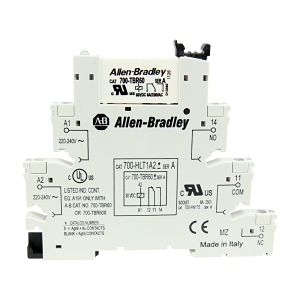

Allen-Bradley 700-HL Interface Relay 6A 1CO with Spring Clamp Connection 24V DC Silver Contacts
The Allen-Bradley 700-HL Interface Relay offers reliable switching capabilities with a nominal current of 6A and a spring clamp connection, ideal for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 700-HL Interface Relay 6A 1CO with Spring Clamp Connection 24V DC Silver Contacts
Brand: NHP
SKU: 700HLT2Z24
Alternatively Known As: Interface Relay, Switching Relay, 700-HL Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC 1: 1500 VA
- Rated Switching Power at AC 15 (230 V): 300 VA
- Breaking Capacity at DC 1 (30 V): 6 A
- Control Supply Voltage (AC 50 Hz): 24 V
- Control Supply Voltage (DC): 24 V
- Control Supply Voltage (AC 60 Hz): 24 V
- Degree of Protection: IP20
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Material Contact: Silver tin-oxide
- Dimensions (H x L x W): 93mm x 76mm x 62mm
- Weight: 0.2 kg
Key Features
- 6A nominal current with 1 change-over contact.
- Spring clamp connection for easy installation.
- LED indication for operational status.
- Rated for 100,000 electrical cycles.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation systems
- Control circuits
- Signal switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HL Interface Relay is available now for immediate purchase, suitable for various industrial applications.
