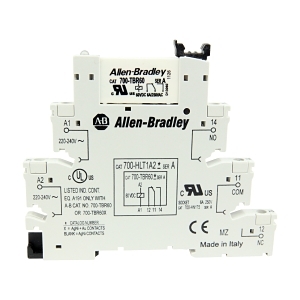

Product Name/Title: Allen-Bradley 700-HL Interface Relay 6A 2CO with Spring Clamp Connection 24V DC Silver Contacts
Brand: NHP
SKU: 700HLT22Z24
Alternatively Known As: 700-HL Relay, Interface Relay, Switching Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC 1: 2500 VA
- Rated Switching Power at AC 15 (230 V): 690 VA
- Breaking Capacity at DC 1 (30 V): 10 A
- Control Supply Voltage (AC 50 Hz): 24 V
- Control Supply Voltage (DC): 24 V
- Control Supply Voltage (AC 60 Hz): 24 V
- Electrical Life at Un in Service: 100,000 cycles
- Material Contact: Silver tin-oxide
- Degree of Protection: IP20
- Operating Temperature: -40 to 55 °C
- Dimensions (H x L x W): 93mm x 76mm x 62mm
- Weight: 0.5 kg
Key Features
- 10 A nominal current with 2 changeover contacts.
- Spring clamp connection for easy installation.
- LED indication for operational status.
- Rated for 100,000 electrical cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits
- Signal switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HL Interface Relay is available now for immediate purchase, ideal for industrial automation and control applications.
