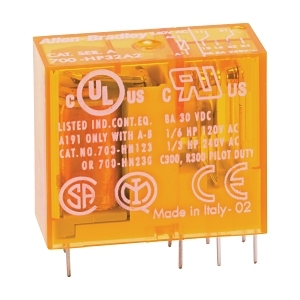

Allen-Bradley 700-HP PCB Pin Style Relay 8A 2 CO DPDT 2Pole 240V AC Coil Standard Silver Contacts

BRAND: NHP
SKU: 700HP32A2
$34.20 List price: $45.40
+ −
30 Days Return Delivery Options
The Allen-Bradley 700-HP PCB Pin Style Relay is designed for reliable switching in various applications, featuring a compact design and robust performance with a nominal current of 8A.

Product Name/Title: Allen-Bradley 700-HP PCB Pin Style Relay 8A 2 CO DPDT 2Pole 240V AC Coil Standard Silver Contacts

Brand: NHP

SKU: 700HP32A2

Alternatively Known As: PCB Relay, Switching Relay, 700-HP Relay

Technical Specifications
  • Nominal Current: 8 A
  • Nominal Voltage AC: 250 V
  • Number of Contacts: 2 CO DPDT
  • Rated Switching Power at AC-1: 2000 VA
  • Rated Switching Power at AC-15 (230V): 500 VA
  • Breaking Capacity at DC-1 (30V): 8 A
  • Breaking Capacity at DC-1 (110V): 0.3 A
  • Voltage Type for Actuating: AC
  • Control Supply Voltage (50Hz): 240 V
  • Control Supply Voltage (60Hz): 240 V
  • Type of Electric Connection: Plug-in connection
  • Operating Voltage: 192-264 V
  • Material Contact: Silver nickel
  • Degree of Protection: IP20
  • Mechanical Life: 10,000,000 cycles
  • Max Shock Acceleration: 50 g
  • Max Vibration Acceleration: 5 m/s²
  • Operating Temperature: -40 to 85 °C
  • Dimensions (H x L x W): 29mm x 25mm x 12.4mm
  • Weight: 0.1 kg
Key Features
  • 8A nominal current with 2 changeover contacts.
  • Plug-in connection for easy installation.
  • Rated for 240V AC coil operation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: HVAC systems, lighting control
  • General: Any application requiring reliable switching
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 700-HP PCB Pin Style Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.

Non-Returnable & Non-Cancellable

700HP32A2-AU-PCB-Relay-Datasheet.pdf (700HP32A2-AU-PCB-Relay-Datasheet.pdf, 362 Kb) [Download]
