800FBX10E
BRAND: NHP

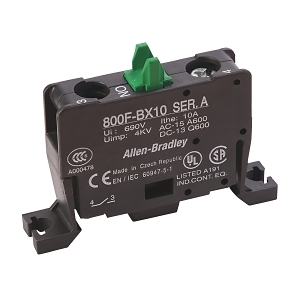

Allen-Bradley 800F 22.5mmPushButton Base Mount, Screw Contact Block, 1 N.O. Early Make

$29.30 List price: $39.00
+ −
30 Days Return Delivery Options

Product Name/Title: Allen-Bradley 800F 22.5mmPushButton Base Mount, Screw Contact Block, 1 N.O. Early Make

Brand: NHP

SKU: 800FBX10E

Alternatively Known As: 800F Push Button, Contact Block, Auxiliary Contact Block

Technical Specifications
  • Rated Insulation Voltage: 690 V
  • Rated Operation Current (AC 15, 120 V): 6 A
  • Rated Operation Current (AC 15, 240 V): 3 A
  • Rated Operation Current (AC 15, 400 V): 1.8 A
  • Rated Operation Current (DC 13, 125 V): 0.55 A
  • Rated Operation Current (DC 13, 250 V): 0.27 A
  • Min Contact Rating Current: 5 mA
  • Min Contact Rating Voltage: 17 V
  • Mounting Method: Base mounting
  • Dimensions (H x L x W): 22.5mm x 22.5mm x 22.5mm
  • Weight: 0.5 kg
Key Features
  • Base mount design for easy installation.
  • 1 N.O. (Normally Open) contact for early make functionality.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Control panels, machinery, automation systems
  • Commercial: Equipment control, safety systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 800F 22.5mm Push Button Base Mount is available now for immediate purchase. Ideal for industrial and commercial control applications.

Non-Returnable & Non-Cancellable

800FBX10E-AU-Contact-Block-for-22.5mm-Operator-Control-Devices-Datasheet.pdf (800FBX10E-AU-Contact-Block-for-22.5mm-Operator-Control-Devices-Datasheet.pdf, 246 Kb) [Download]
