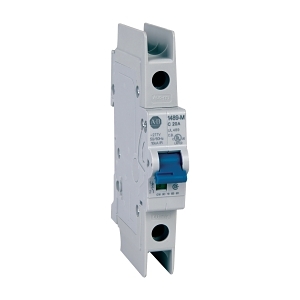

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 35A D Curve
Brand: NHP
SKU: 1489M1D350
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 35 A
- Number of Poles: 1
- Trip Curve: D
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage: 12 V
- Rated Short Circuit Breaking Capacity: 15 kA
- Max Rated Operation Voltage: 253 V
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 111mm x 74mm x 17.5mm
- Weight: 0.13 kg
Key Features
- Rated current of 35 A with a D curve trip characteristic.
- Short circuit breaking capacity of 15 kA.
- IP40 protection degree for dust and moisture resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance safety and reliability in electrical systems, reducing the risk of fire hazards.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 35A D Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
Non-Returnable & Non-Cancellable
