25AD024N114
BRAND: NHP

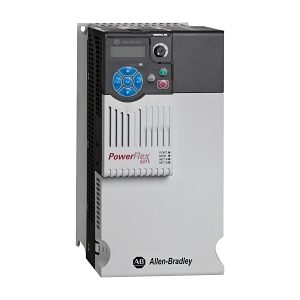

Allen-Bradley PowerFlex 523 VSD 480V IP20 24A 11kW ND HD Frame D


$3,616.00 List price: $4,801.60
+

Product Name/Title: Allen-Bradley PowerFlex 523 VSD 480V IP20 24A 11kW ND HD Frame D

Brand: NHP

SKU: 25AD024N114

Alternatively Known As: PowerFlex 523 VSD, Variable Speed Drive, Frequency Converter

Technical Specifications
  • Number of phases input: 3
  • Nominal input voltage: 415 V
  • Nominal output power AC: 11 kW
  • Nominal output current I2N: 24 A
  • KW rating normal duty: 11 kW
  • KW rating heavy duty: 11 kW
  • Dynamic braking transistor: Yes
  • Control characteristic: PID
  • EMC version: Yes
  • Contains keypad: Yes
  • Frame size: D
  • Degree of protection IP: IP20
  • Operating temperature: -20-50 °C
  • Dimensions (H x L x W): 300mm x 150mm x 200mm
  • Weight: 5.0 kg
Key Features
  • Variable speed control for improved energy efficiency.
  • Dynamic braking transistor for enhanced performance.
  • PID control characteristic for precise operation.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Manufacturing, processing, and automation systems
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 523 VSD is available now for immediate purchase. Ideal for industrial and commercial applications requiring efficient motor control.

25AD024N114-AU-PF523-Variable-Speed-Drive-Datasheet.pdf (25AD024N114-AU-PF523-Variable-Speed-Drive-Datasheet.pdf, 247 Kb) [Download]
