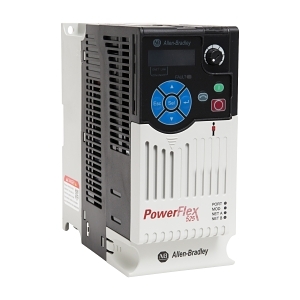

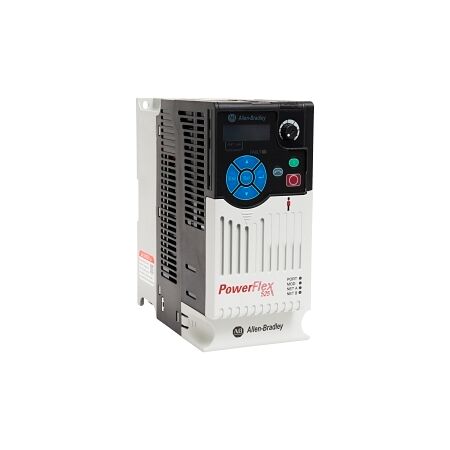

Product Name/Title: Allen-Bradley PowerFlex 525 VSD 480V IP20 10.5A 4kW ND and HD Frame B
Brand: NHP
SKU: 25BD010N114
Alternatively Known As: VSD, Variable Speed Drive, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 4 kW
- Nominal output current: 10.5 A
- KW rating (normal duty): 4 kW
- KW rating (heavy duty): 4 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Suitable for safety functions: Yes
- Contains keypad: Yes
- Frame size: B
- Degree of protection: IP20
- Operating temperature: -20-50 °C
- Dimensions (H x L x W): 200mm x 150mm x 150mm
- Weight: 5 kg
Key Features
- 3-phase input with a nominal voltage of 415V.
- Dynamic braking transistor for enhanced performance.
- PID control characteristic for precise speed control.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control applications in manufacturing and processing
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 525 Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
