25BD2P3N104
BRAND: NHP

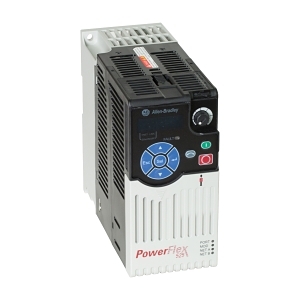

Allen-Bradley PowerFlex 525 VSD 480V IP20 2.3A 0.75kW ND and HD Frame A No EMC


$1,500.00 List price: $1,991.80
+

Product Name/Title: Allen-Bradley PowerFlex 525 VSD 480V IP20 2.3A 0.75kW ND and HD Frame A No EMC

Brand: NHP

SKU: 25BD2P3N104

Alternatively Known As: PowerFlex 525 Variable Speed Drive, Allen-Bradley VSD, Frequency Converter

Technical Specifications
  • Input Phases: 3
  • Nominal Input Voltage: 415 V
  • Nominal Output Power: 0.75 kW
  • Nominal Output Current: 2.3 A
  • Frame Size: A
  • Degree of Protection: IP20
  • Operating Temperature: -20 to 50 °C
  • Dimensions (H x L x W): 200mm x 150mm x 150mm
  • Weight: 2.5 kg
Key Features
  • Variable speed drive with PID control characteristic.
  • Dynamic braking transistor included.
  • Suitable for safety functions.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance and safety.
Applications
  • Industrial: Motor control in manufacturing and processing applications
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 525 VSD is available now for immediate purchase. Ideal for industrial and commercial motor control applications.

25BD2P3N104-AU-PF525-Variable-Speed-Drive-Datasheet.pdf (25BD2P3N104-AU-PF525-Variable-Speed-Drive-Datasheet.pdf, 258 Kb) [Download]
