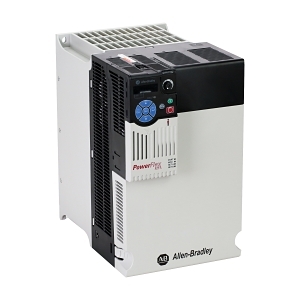

Product Name/Title: Allen-Bradley PowerFlex 525 VSD 600V IP20 32A 22kW ND or 27A 18.5kW HD Frame E No EMC
Brand: NHP
SKU: 25BE032N104
Alternatively Known As: PowerFlex 525 VSD, Variable Speed Drive, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 22 kW
- Nominal output current I2_n: 32 A
- KW rating normal duty: 22 kW
- KW rating heavy duty: 18.5 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: No
- Suitable for safety functions: Yes
- Contains keypad: Yes
- Frame size: E
- Degree of protection IP: IP20
- Operating temperature: -20-50 °C
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- 3-phase input with a nominal voltage of 415 V.
- Nominal output power of 22 kW and output current of 32 A.
- Dynamic braking transistor included for enhanced performance.
- PID control characteristic for precise speed control.
- Suitable for safety functions and includes a keypad.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control in manufacturing and processing plants
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 525 Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
Non-Returnable & Non-Cancellable
