20AC022F0AYNANC0
BRAND: NHP

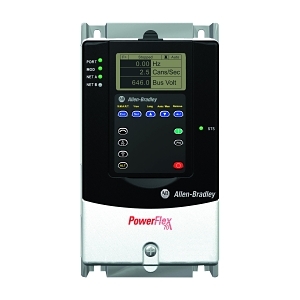

Allen-Bradley PowerFlex 70 VSD 400V Flange Mount 22A 11kW ND or 15A 7.5kW HD


$9,326.50 List price: $12,384.30
+

Product Name/Title: Allen-Bradley PowerFlex 70 VSD 400V Flange Mount 22A 11kW ND or 15A 7.5kW HD

Brand: NHP

SKU: 20AC022F0AYNANC0

Alternatively Known As: PowerFlex 70 Variable Speed Drive, PF70 VSD, Allen-Bradley VSD

Technical Specifications
  • Input Voltage: 415 V
  • Output Power: 11 kW (Normal Duty), 7.5 kW (Heavy Duty)
  • Input Phases: 3
  • Output Phases: 3
  • Mains Frequency: 50 Hz
  • Degree of Protection: IP20
  • Number of Digital Inputs: 6
  • Number of Digital Outputs: 2
  • Number of Analogue Inputs: 2
  • Number of Analogue Outputs: 1
  • Frame Size: D
  • Dimensions (H x L x W): 350mm x 211mm x 220mm
  • Weight: 9.13 kg
Key Features
  • Variable speed drive with PID control characteristic.
  • Supports multiple communication protocols including Ethernet/IP, Modbus, and Profibus.
  • Dynamic braking transistor included for enhanced performance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance and safety.
Applications
  • Industrial: Manufacturing, automation, and process control
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
  • Supports sustainable practices in industrial and commercial applications.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 70 VSD is available now for immediate purchase, ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

20AC022F0AYNANC0-AU-PF70-Variable-Speed-Drive-Datasheet.pdf (20AC022F0AYNANC0-AU-PF70-Variable-Speed-Drive-Datasheet.pdf, 271 Kb) [Download]
