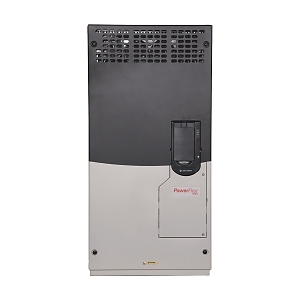

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 690V IP54 171A 160kW ND or 142A 132kW HD No Brake Frame 7
Brand: NHP
SKU: 20F1AGF171JN0NNNNN
Alternatively Known As: PowerFlex 753 Variable Speed Drive, VSD, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 690 V
- Nominal output power AC: 160 kW
- Nominal output current: 171 A
- KW rating normal duty: 160 kW
- KW rating heavy duty: 132 kW
- Dynamic braking transistor: No
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 7
- Degree of protection IP: IP54
- Degree of protection NEMA: 12
- Operating temperature: -20-60 °C
- Storage temperature: -40-70 °C
- Dimensions (H x L x W): 1614mm x 465mm x 610mm
- Weight: 132 kg
Key Features
- Variable speed drive with PID control characteristic.
- IP54 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control applications
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
Standard warranty terms apply.
Available Now
The Allen-Bradley PowerFlex 753 VSD is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
Non-Returnable & Non-Cancellable
