BRAND: NHP

Allen-Bradley PowerFlex 755 VSD 400V IP54 ND 540A 315kW or HD 456A 250kW No Brake Frame 8


$103,761.00 List price: $137,780.00

Free pick up (over 25 kg)
For delivery quote message

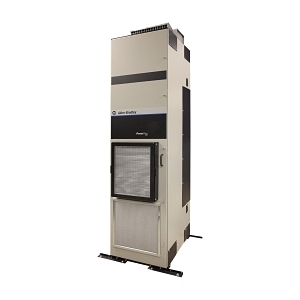

Product Name/Title: Allen-Bradley PowerFlex 755 VSD 400V IP54 ND 540A 315kW or HD 456A 250kW No Brake Frame 8

Brand: NHP

SKU: 20G1AJC540JN0NNNNN

Alternatively Known As: VSD, Variable Speed Drive, Frequency Converter

Technical Specifications
  • Input Phases: 3
  • Nominal Input Voltage: 400 V
  • Nominal Output Power: 315 kW
  • Nominal Output Current: 540 A
  • KW Rating (Normal Duty): 315 kW
  • KW Rating (Heavy Duty): 250 kW
  • Dynamic Braking Transistor: No
  • Control Characteristic: PID
  • EMC Version: Yes
  • Integrated Motion Function: No
  • Suitable for Safety Functions: Yes
  • Contains Keypad: No
  • Frame Size: 8
  • Degree of Protection: IP54
  • Operating Temperature: -20 to 60 °C
  • Storage Temperature: -40 to 70 °C
  • Dimensions (H x L x W): 600mm x 400mm x 300mm
  • Weight: 50 kg
Key Features
  • Variable speed control for enhanced efficiency.
  • IP54 rated for protection against dust and water.
  • Suitable for safety functions.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Manufacturing, processing plants, and automation systems
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 755 Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise control.

Non-Returnable & Non-Cancellable

20G1AJC540JN0NNNNN-AU-PF755-Variable-Speed-Drive-Datasheet.pdf (20G1AJC540JN0NNNNN-AU-PF755-Variable-Speed-Drive-Datasheet.pdf, 1,363 Kb) [Download]
