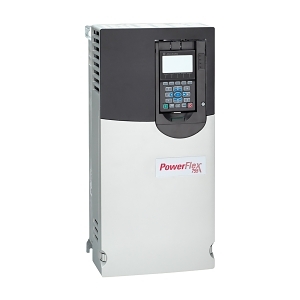

Product Name/Title: Allen-Bradley PowerFlex 755 VSD 480V IP20 ND 248A 200HP or HD 186A 150kW Frame 6
Brand: NHP
SKU: 20G1AND248AA0NNNNN
Alternatively Known As: PowerFlex 755 VSD, Variable Speed Drive, Frequency Converter
- Number of phases input: 3
- Nominal output current: 248 A
- KW rating normal duty: 150 kW
- KW rating heavy duty: 110 kW
- Degree of protection: IP20
- Operating temperature: -20 to 60 °C
- Storage temperature: -40 to 70 °C
- Dimensions (H x L x W): 665.5mm x 346.4mm x 308mm
- Weight: 48 kg
- Nominal input voltage of 480V with a power output of 150 kW.
- Dynamic braking transistor included for enhanced performance.
- PID control characteristic for precise speed regulation.
- Suitable for safety functions.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial: Motor control in manufacturing and processing plants
- Commercial: HVAC systems, pumps, and fans
- Complies with relevant Australian standards for electrical equipment.
- Energy-efficient operation reduces overall power consumption.
Standard warranty terms apply.
The Allen-Bradley PowerFlex 755 Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
