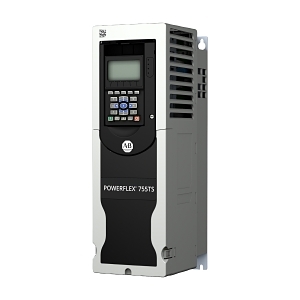

Product Name/Title: Allen-Bradley PowerFlex 755TS VSD 400V IP20 ND 5A 2.2kW or HD 3.5A 1.5kW Frame 1
Brand: NHP
SKU: 20G21RC5P0JA0NNNNN
Alternatively Known As: PowerFlex 755 Variable Speed Drive, Allen-Bradley VSD
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 400 V
- Nominal output power AC: 2.2 kW
- Nominal output current: 5 A
- KW rating normal duty: 2.2 kW
- KW rating heavy duty: 1.5 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Contains keypad: Yes
- Frame size: 1
- Degree of protection IP: IP20
- Degree of protection NEMA: 1
- Operating temperature: -20-60 °C
- Storage temperature: -40-70 °C
- Dimensions (H x L x W): 400mm x 211mm x 190mm
- Weight: 6 kg
Key Features
- 3-phase input with a nominal voltage of 400V.
- Dynamic braking transistor for enhanced performance.
- PID control characteristic for precise speed control.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control applications
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 755TS Variable Speed Drive is available now for immediate purchase, suitable for various industrial applications.
