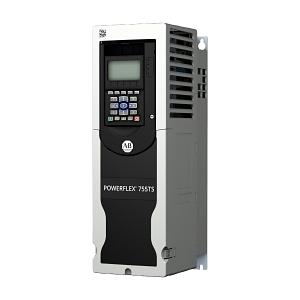

Product Name/Title: Allen-Bradley PowerFlex 755TS VSD 480V IP20 ND 77A 60HP or HD 65A 50HP Frame 5
Brand: NHP
SKU: 20G21ND077JA0NNNNN
Alternatively Known As: PowerFlex 755 Variable Speed Drive, Allen-Bradley VSD, PF755TS Drive
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 480 V
- Nominal output power AC: 44.7 kW
- Nominal output current: 77 A
- KW rating (normal duty): 44 kW
- KW rating (heavy duty): 37 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Degree of protection: IP20
- Operating temperature: -20-60 °C
- Storage temperature: -40-70 °C
- Dimensions (H x L x W): 550mm x 212mm x 270mm
- Weight: 21 kg
Key Features
- Variable speed drive with PID control characteristic.
- Dynamic braking transistor included for enhanced performance.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control applications in manufacturing and processing.
- Commercial: HVAC systems, pumps, and fans.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
Standard warranty terms apply, please check with the supplier.
Available Now
The Allen-Bradley PowerFlex 755TS VSD is available for immediate purchase, ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
