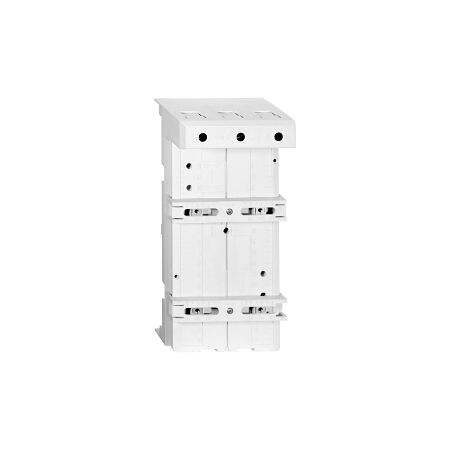

Busbar Module 200A | Screw Connection | DIN Rail Mount | Top Terminals by NHP
Busbar module with 200A rated current and screw connection—ideal for motor control and electrical distribution. Built for industrial and commercial use, with DIN rail top hat mounting for easy installation.
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 141A 32214 Standard Busbar Module 200A Top Terminals
Brand: NHP
SKU: 141AFS108V200T
Alternatively Known As: Busbar Module, Busbar Adapter, Motor Control Busbar
- Rated Current: 200 A
- Type of Electric Connection: Screw connection
- Mounting Rail Armament: Other
- Version as Busbar Adapter: Yes
- Suitable for DIN Rail Top Hat Rail Mounting: Yes
- Rail Width: 35 mm
- Busbar Distance: 60 mm
- Min Busbar Thickness: 5 mm
- Max Busbar Thickness: 10 mm
- Dimensions (H x L x W): 222mm x 60mm x 108mm
- Weight: 2.5 kg
- Rated current of 200 A for robust performance.
- Screw connection for reliable electrical connections.
- Compatible with DIN rail top hat rail mounting.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor control systems and electrical distribution
- Commercial: Suitable for various electrical installations
- Complies with relevant Australian standards for electrical safety.
- Standard design ensures compatibility with various systems.
1 year warranty against manufacturing defects.
The Allen-Bradley 141A 32214 Standard Busbar Module 200A Top Terminals is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
