5041NMS
BRAND: Clipsal

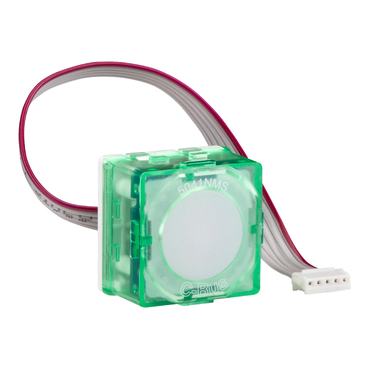

C-Bus, Slave Module, 40 Series


$42.30 List price: $63.40
+

Product Name/Title: C-Bus, Slave Module, 40 Series

Brand: Clipsal

SKU: 5041NMS

Alternatively Known As: C-Bus Push Button Module, C-Bus Slave Control Module

Technical Specifications
  • Rated operational voltage: 15...36 V DC
  • Current consumption: 18 mA
  • Isolation voltage: 3.75 kV from C-Bus to mains
  • Input impedance: 100 kOhm at 1-1 kHz
  • Time delay range: 1s...18h12m15s
  • Module configuration: programmed with learn mode or C-Bus software
  • Dimensions (H x L x W): 22.8mm x 14.5mm x 22.8mm
  • Weight: 0.007 kg
Key Features
  • Push-button interface for control
  • 255 possible dimmer levels
  • Local LED status indication (red/blue)
  • Compatible with C-Bus Iconic and Pro Series wall plates
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Smart Home: Control of lighting and appliances
  • Commercial: Integration with building management systems
Standards & Compliance
  • Complies with AS/NZS CISPR 15, AS/NZS CISPR 14-1, AS/NZS 60669.2.1
Environmental Benefits
  • Compliant with RoHS and free of toxic heavy metals.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal C-Bus Slave Module 40 Series is available now for immediate purchase. Ideal for smart home and commercial applications.

5041NMS (5041NMS, 278 Kb) [Download]
