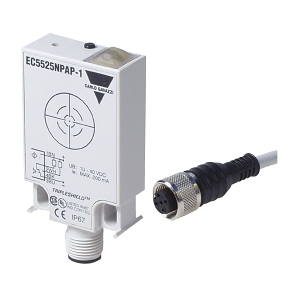

Product Name/Title: Carlo Gavazzi Capacitive Proximity Plastic Rectangular 55 x 38mm DC NPN NO NC 25mm plus 5m
Brand: NHP
SKU: EC5525NPAP1
Alternatively Known As: Capacitive Proximity Switch, Proximity Sensor, NPN Proximity Sensor
- Switching distance: 25 mm
- Voltage type: DC
- Rated control supply voltage: 10-40 V
- Switching frequency: 50 Hz
- Number of conductors: 4
- Type of electric connection: Cable
- Construction type housing: Cuboid
- Material housing: Plastic
- Ambient temperature: -25-80 °C
- Storage temperature: -40-85 °C
- Dimensions (H x L x W): 38mm x 55mm x 35mm
- Weight: 0.2 kg
- Capacitive proximity sensor with adjustable settings.
- NPN output with both normally closed and normally open contact options.
- Wide voltage range of 10-40 V DC.
- Professional installation is recommended for optimal performance and safety.
- Industrial automation
- Material handling
- Packaging machinery
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Durable design suitable for a wide range of temperatures, reducing the need for replacements.
1 year warranty against manufacturing defects.
The Carlo Gavazzi Capacitive Proximity Sensor is available now for immediate purchase. Ideal for industrial automation and material handling applications.
